Heater and A/C System Controls

Heater and A/C System Controls

Removal

• The controls are made up of two separable housings on vehicles through 05.18.08. Before removing controls, bring rotary buttons into the following position:

• Heater control to "cold"

• Blower to "0"

• Air flow direction to "footwell"

• Removing both components is identical.

- Remove the trim from the heater and A/C controls.

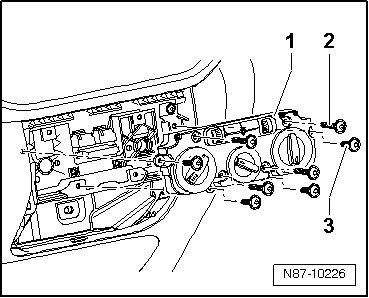

- Remove the bolts - 2 - (4.2 x 45) and - 3 - (4.2 x 16) and the controls - 1 - from the center console.






- Release the connector - A - by pulling it in direction of arrow - 1 -.

- Press connector release - B - toward the connector - arrow 2 - and disconnect the connector - C -.

- Disconnect the connector - D -.

Installation

Installation is performed in reverse order of removal, make sure when doing so that the rotary buttons have the same position as when removing.
