Air Distribution Door Motor (V428)

Air Distribution Door Motor (V428)

Removal

- Remove the instrument panel.

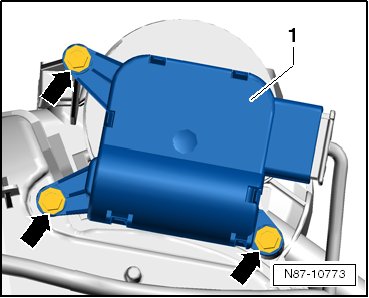

- Disconnect the connector from the air distribution door motor (V428) - 1 -.

- Remove the bolts (1.5 Nm) - arrows -.






- Remove the air distribution door motor - 1 -.

Installation

- Install the air distribution door motor in reverse order of removal.
