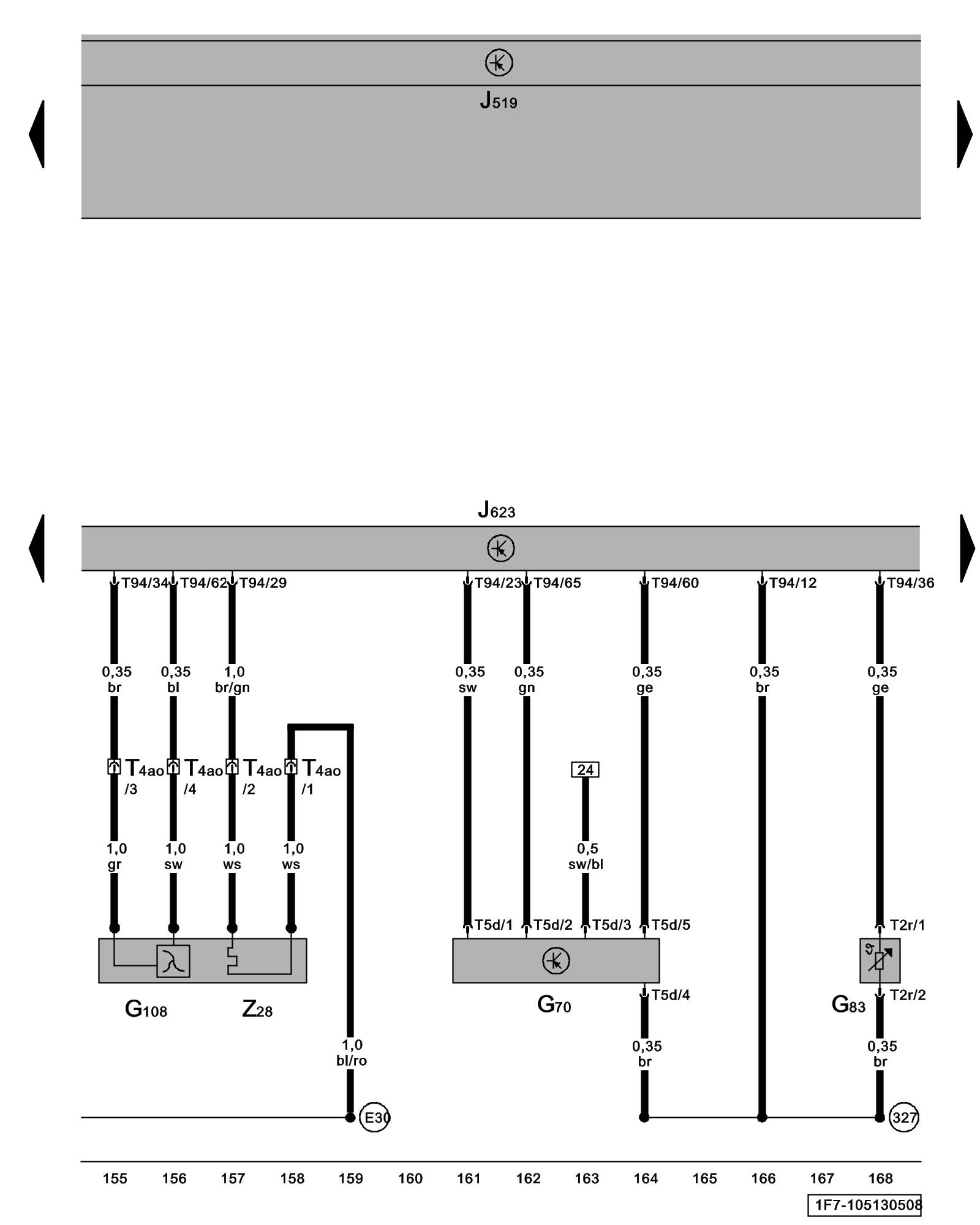

Diagram 105/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Mass Air Flow (MAF) Sensor, Engine Coolant Temperature (ECT) Sensor (on Radiator), Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC), Engine Control Module (ECM), Oxygen Sensor (O2S) Heater 1 (behind Three Way Catalytic Converter (TWC)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G70 - Mass Air Flow (MAF) Sensor 2.0L CCTA, CBFA and BPY Overviews

G83 - Engine Coolant Temperature (ECT) Sensor (on Radiator) 2.0L CCTA, CBFA and BPY Overviews

G130 - Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) Locations

J519 - Vehicle Electrical System Control Module Overview of Control Modules

J623 - Engine Control Module (ECM), in plenum chamber, center Overview of Control Modules

T2r - Double Connector

T4ao - 4-Pin Connector

T5d - 5-Pin Connector

T94 - 94-Pin Connector

Z29 - Oxygen Sensor (O2S) Heater 1 (behind Three Way Catalytic Converter (TWC)

(327) - Sensor Ground Connection (in engine compartment wiring harness)

(E30) - Connection (87a) (in engine wiring harness)
