Diagram 67/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Antennas





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

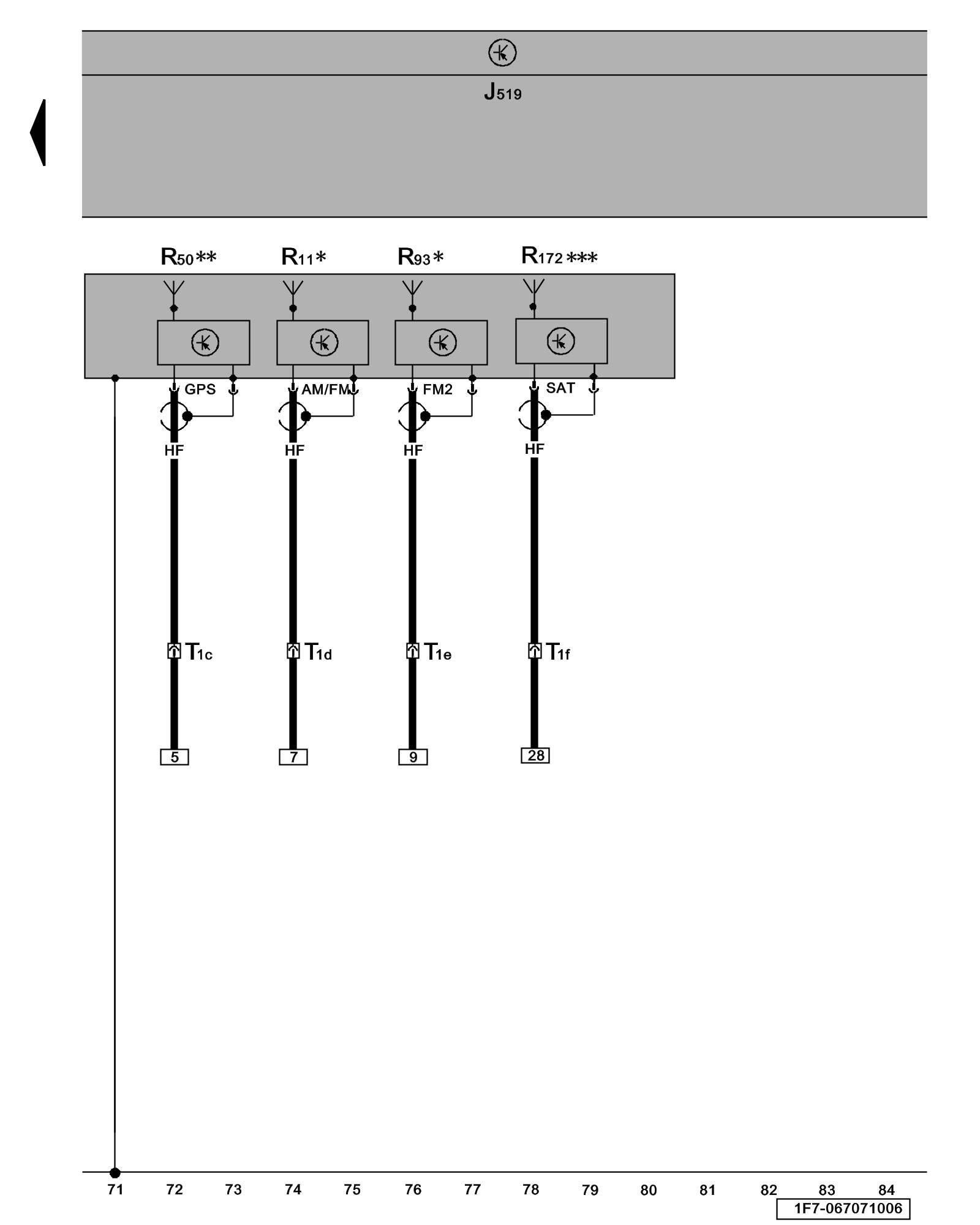

J519 - Vehicle Electrical System Control Module Overview of Control Modules

R11 - Antenna Antenna Systems Overview

R50 - Navigation System Antenna Antenna Systems Overview

R93 - Radio Antenna 2 Antenna Systems Overview

R172 - Satellite Tuner Antenna Antenna Systems Overview

T1c - Single Connector, near right taillamp Overview of Connector Stations and Connectors

T1d - Single Connector, near right taillamp Overview of Connector Stations and Connectors

T1e - Single Connector, near right taillamp Overview of Connector Stations and Connectors

T1f - Single Connector, near right taillamp Overview of Connector Stations and Connectors

* - Only models with radio system

** - Only models with Navigation System

*** - Only models with Satellite Radio Tuner

Previous Diagram 67/6 (Tracks 57-70)
