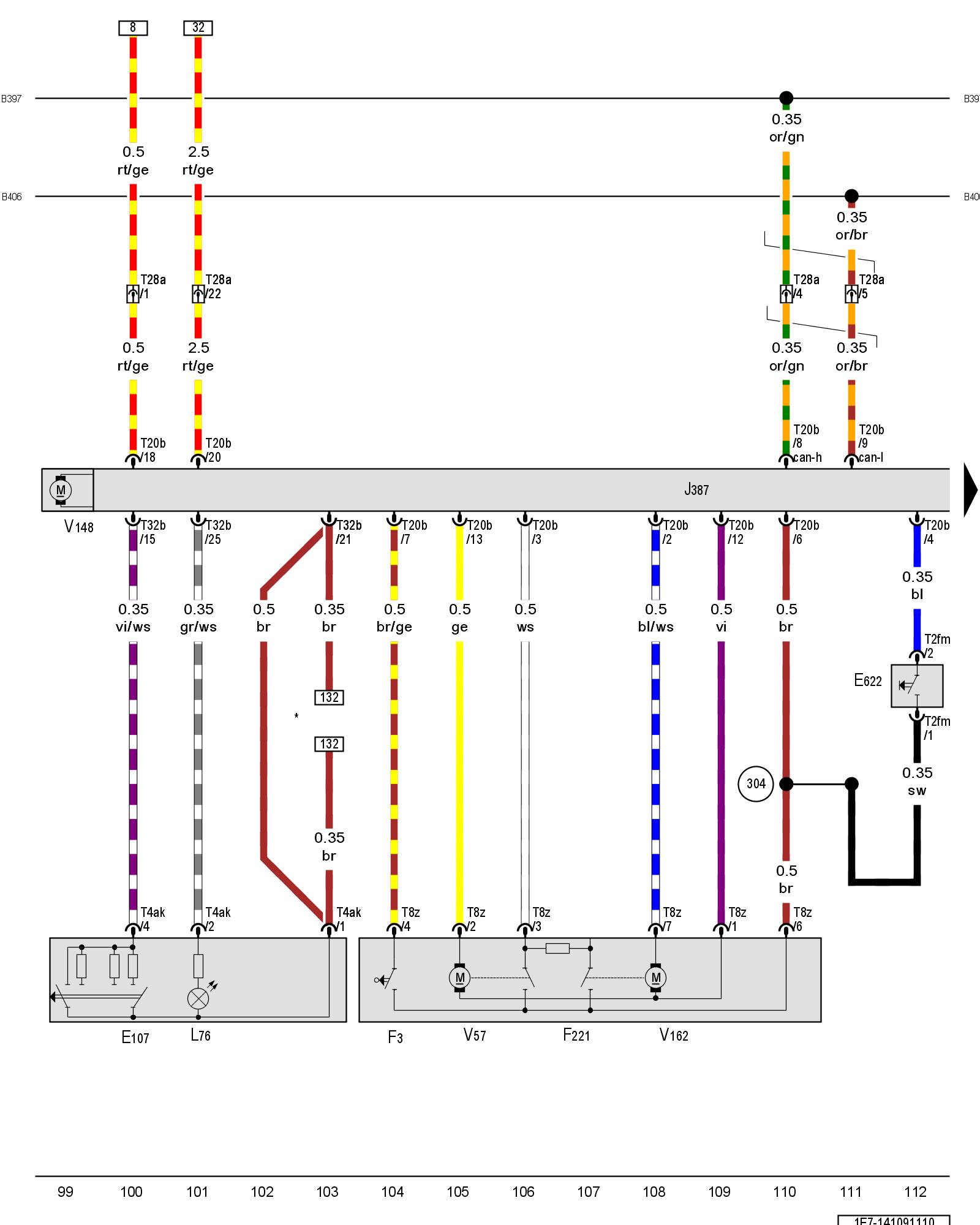

Diagram 141/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front passenger door window regulator switch, Front passenger window lowering microswitch, Front passenger central locking lock unit, Front passenger door control module, Front passenger window regulator motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E107 - Front passenger door window regulator switch

E622 - Front passenger window lowering microswitch

F3 - Front passenger door contact switch Locations

F221 - Front passenger central locking lock unit Locations

J387 - Front passenger door control module Overview of Control Modules

L76 - Push button illumination bulb

T2fm - Double connector

T4ak - 4-pin connector

T8z - 8-pin connector

T20b - 20-pin connector

T28a - 28-pin connector

T32b - 32-pin connector

V57 - Front passenger door central locking system motor Locations

V148 - Front passenger window regulator motor Locations

V162 - Front passenger central locking -SAFE- motor Locations

(304) - Ground connection 3 (in front passenger door wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - Depending on equipment
