Vehicle Inclination Sensor (G384)

Vehicle Inclination Sensor (G384)

• To remove the sensor, anti-theft warning system must be deactivated. Refer to => [ Anti-Theft Alarm System, Activating and Deactivating ] Anti-Theft Alarm System, Activating and Deactivating.

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the glove compartment.

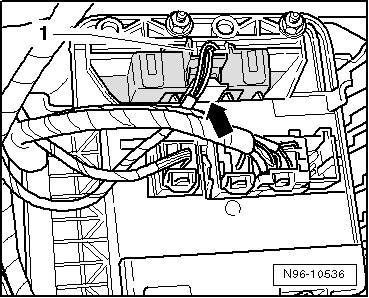

- Disconnect harness connector - 1 - from Vehicle Inclination Sensor.






- Disengage catch - arrow - and pull sensor out of bracket for Comfort System Central Control Module (J393).

Installation

- Installation is performed in the reverse order of removal.
