Diagram 110/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

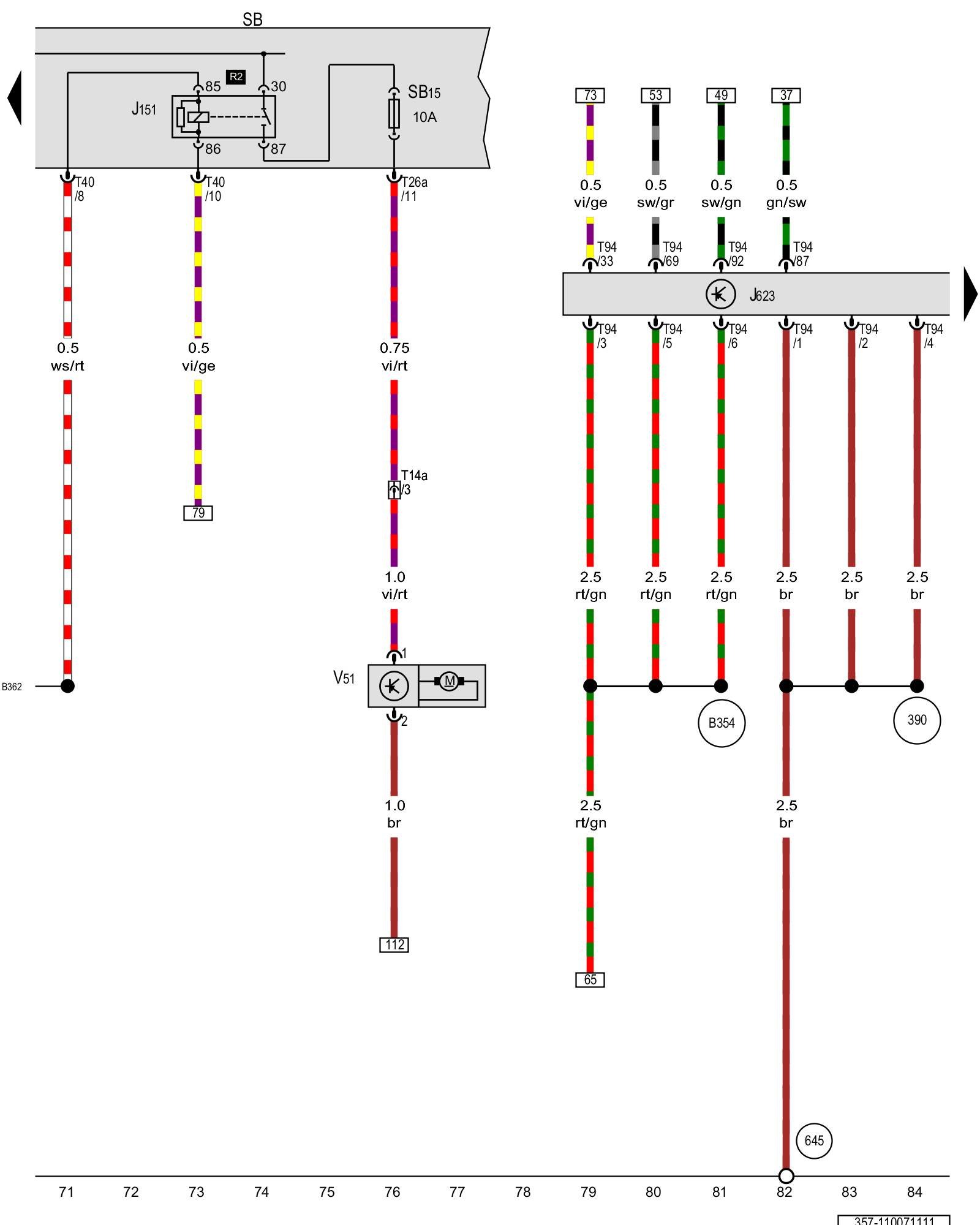

Coolant circulation pump relay, Engine control module, Fuse panel B, After-run coolant pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J151 - Coolant circulation pump relay

J623 - Engine control module Control Modules in Engine Compartment

SB - Fuse panel B

SB15 - Fuse 15 (on fuse panel B)

T14a - 14-pin connector

T26a - 26-pin connector

T40 - 40-pin connector

T94 - 94-pin connector

V51 - After-run coolant pump Locations

(390) - Ground connection 25 (in main wiring harness)

(645) - Ground connection 1 on bulkhead Overview Of Ground Connections in Engine Compartment

(B354) - Positive connection 5 (87a) (in main wiring harness)

(B362) - Positive connection 13 (87a) (in main wiring harness)
