Diagram 110/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

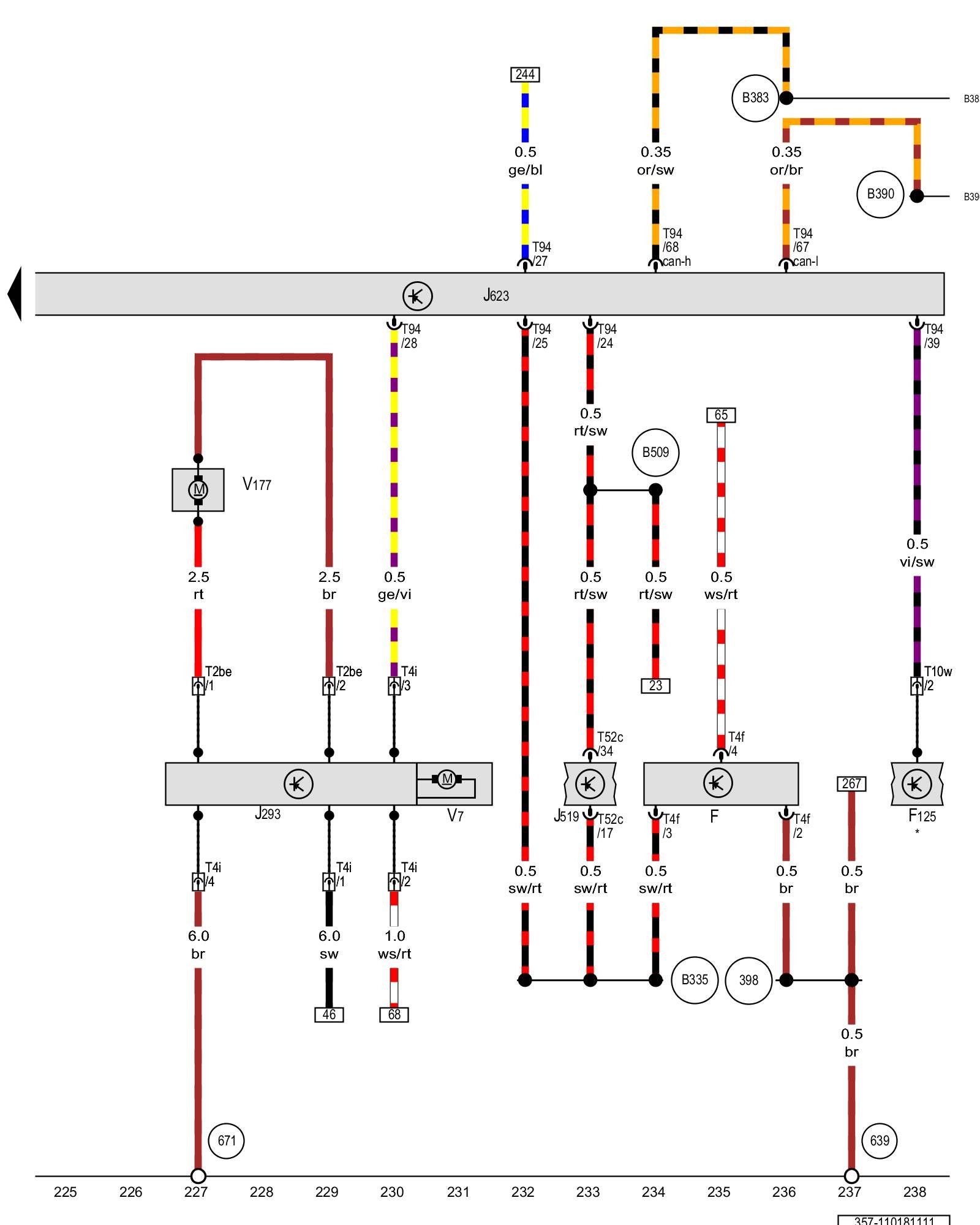

Brake lamp switch, Multifunction transmission range switch, Coolant fan control module, Engine control module, Coolant fan, Coolant fan 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch Anti-lock Brake System (ABS) W/ ESP [1][2]Brake Light Switch

F125 - Multifunction transmission range switch Locations Multifunction Transmission Range Switch -F125-

J293 - Coolant fan control module Locations

J519 - Vehicle electrical system control module Control Modules in Interior

J623 - Engine control module Control Modules in Engine Compartment

T2be - Double connector, on the lock carrier

T4f - 4-pin connector

T4i - 4-pin connector, on the lock carrier

T10w - 10-pin connector

T52c - 52-pin connector

T94 - 94-pin connector

V7 - Coolant fan Locations

V177 - Coolant fan 2 Locations

(398) - Ground connection 33 (in main wiring harness)

(639) - Ground connection on left A-pillar Overview Of Ground Connections in Interior

(671) - Ground connection 1 on left front longitudinal member Overview Of Ground Connections in Engine Compartment

(B335) - Connection 1 (54) (in main wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B509) - OBD connection 3 (in main wiring harness)

* - Only for vehicles with automatic transmission
