Diagram 110/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

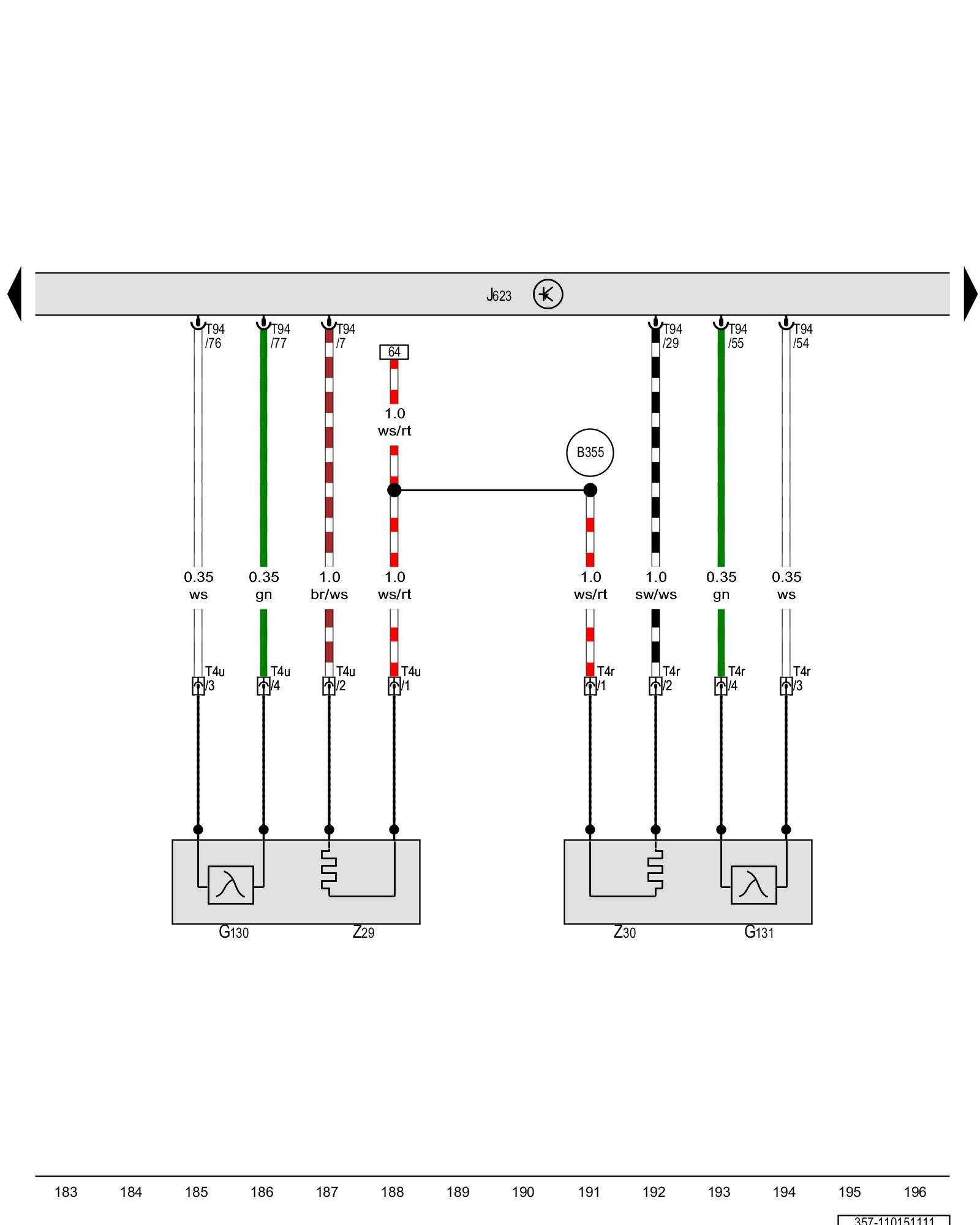

Oxygen sensor after three way catalytic converter, Oxygen sensor 2 after catalytic converter, Engine control module, Heater for oxygen sensor 1 after catalytic converter, Heater for oxygen sensor 2 after catalytic converter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G130 - Oxygen sensor after three way catalytic converter Locations Oxygen Sensor After Converter -G130- / Heater For Oxygen Sensor 1 After Converter -Z29-

G131 - Oxygen sensor 2 after catalytic converter Locations Oxygen Sensor 2 After Converter -G131- / Heater For Oxygen Sensor 2 After Converter -Z30-

J623 - Engine control module Control Modules in Engine Compartment

T4r - 4-pin connector, near the oxygen sensor

T4u - 4-pin connector, near the oxygen sensor

T94 - 94-pin connector

Z29 - Heater for oxygen sensor 1 after catalytic converter Oxygen Sensor After Converter -G130- / Heater For Oxygen Sensor 1 After Converter -Z29-

Z30 - Heater for oxygen sensor 2 after catalytic converter Oxygen Sensor 2 After Converter -G131- / Heater For Oxygen Sensor 2 After Converter -Z30-

(B355) - Positive connection 6 (87a) (in main wiring harness)

Previous Diagram 110/14 (Tracks 169-182)

Next Diagram 110/16 (Tracks 197-210)
