Diagram 110/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

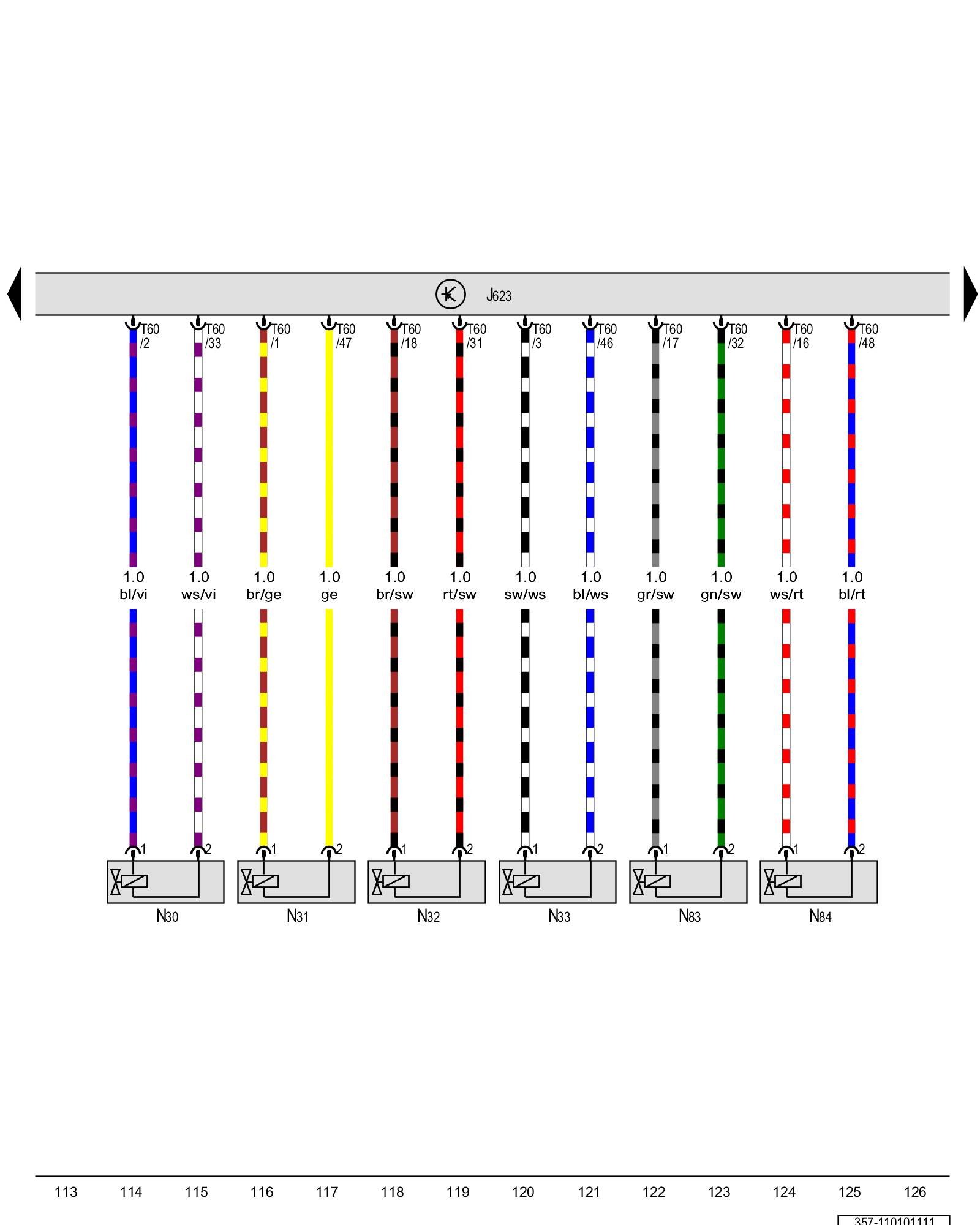

Engine control module, Cylinder 1 fuel injector, Cylinder 2 fuel injector, Cylinder 3 fuel injector, Cylinder 4 fuel injector, Cylinder 5 fuel injector, Cylinder 6 fuel injector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Control Modules in Engine Compartment

N30 - Cylinder 1 fuel injector Locations Diagrams

N31 - Cylinder 2 fuel injector Locations Diagrams

N32 - Cylinder 3 fuel injector Locations Diagrams

N33 - Cylinder 4 fuel injector Locations Diagrams

N83 - Cylinder 5 fuel injector Locations Diagrams

N84 - Cylinder 6 fuel injector Locations Diagrams

T60 - 60-pin connector

Previous Diagram 110/9 (Tracks 99-112)

Next Diagram 110/11 (Tracks 127-140)
