Front Wheel Drive

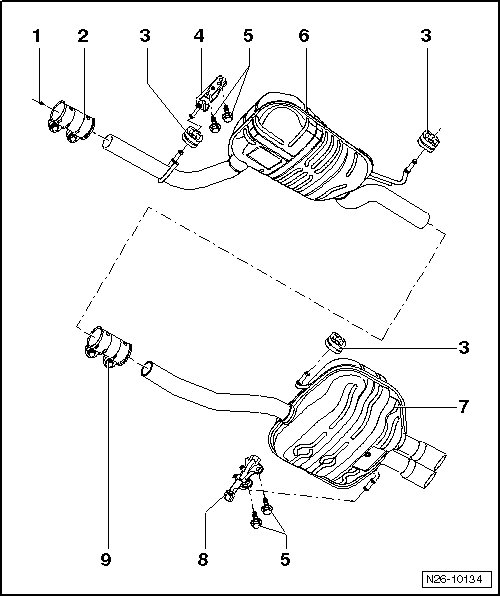

Muffler and Mounts Overview

Center and rear muffler, separating. Refer to => [ Center and Rear Muffler, Separating ] Center and Rear Muffler, Separating.






1 from the Front Muffler

2 Clamping Sleeve

• M8 - 25 Nm

• M10 - 40 Nm

• Tighten the nuts evenly.

3 Retaining Loop

• Replace if damaged.

4 Suspended Mount

• For the center muffler.

5 Bolt

• 25 Nm

6 Center Muffler

• Original equipment as one unit with the rear muffler. For repairs, replace each separately.

• Separating the exhaust system. Refer to => [ Center and Rear Muffler, Separating ] Center and Rear Muffler, Separating.

7 Rear Muffler

• Original equipment as one unit with the center muffler. For repairs, replace each separately.

• Separating exhaust system. Refer to => [ Center and Rear Muffler, Separating ] Center and Rear Muffler, Separating.

8 Suspended Mount

• For the rear muffler.

9 Clamping Sleeve

• M8 - 25 Nm

• M10 - 40 Nm

• Tighten the nuts evenly.

• For repairs.

• For individual replacement of the center and rear mufflers.

Clamping Sleeve Location





- Install the clamping sleeve so that bolt end - arrow - does not project beyond the lower edge of the clamping sleeve.

• Threaded connection points toward the right.

Installed Position of the Clamping Sleeve (for Repairs)





- Install the clamping sleeve so that the bolt end - arrow - does not project beyond the lower edge of the clamping sleeve.

• Threaded connection points toward the right.
