2.0L DSG

Starter

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1331)

• Torque wrench (V.A.G 1332)

• Spring-type Clip Pliers (VAS 5024)

Removing

- Disconnect the battery. Refer to => [ Battery, Disconnecting and Connecting ] Service and Repair.

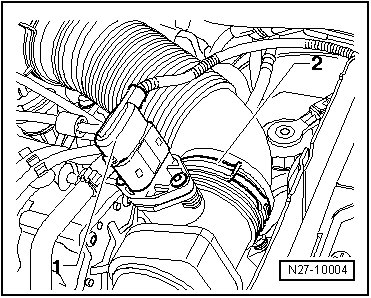

- Release and disconnect the connector - 1 - and loosen the spring clamp - 2 - using (VAS 5024).

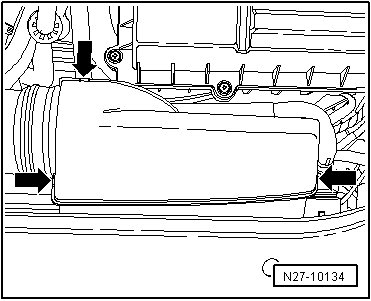

- Release retaining tabs - arrows - and remove cover.

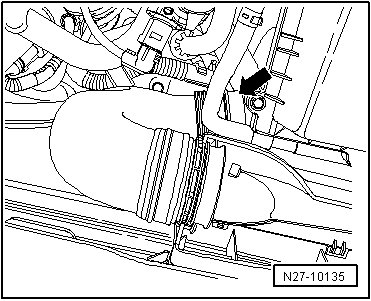

- Remove the hose - arrow - from the air filter housing and remove it from the vehicle.

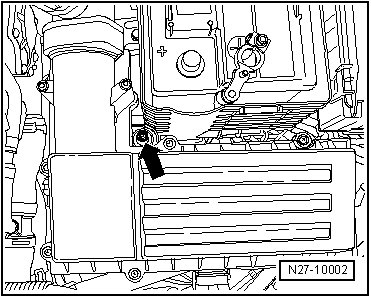

- Remove air filter housing mounting bolt - arrow -.






- Pull the air filter housing upward out of the rubber mountings and remove it from the vehicle.

- Slide protective cap in - direction of arrow - downward from magnetic switch.






- Remove positive wire - 1 - and disconnect harness connector of terminal 50 - 2 -.






- Remove upper mounting bolt for starter - arrow -.






- Remove lower mounting bolt for starter - arrow -.






- Remove starter upward and out of vehicle.

Installing

Install in reverse order of removal. Note the following:

- Tighten the threaded connections to the specifications shown in => [ Starter Overview ] Starter Overview.
