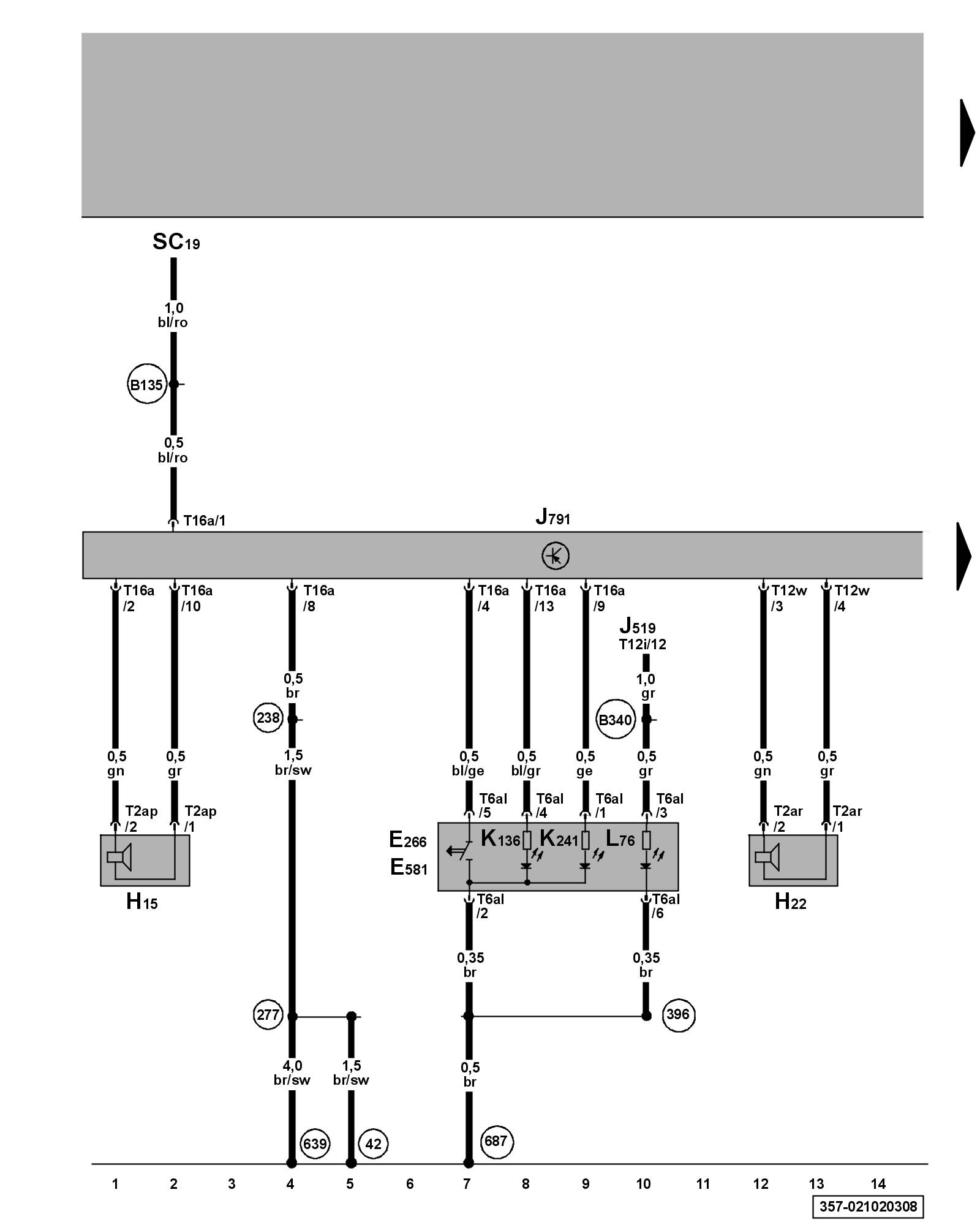

Diagram 21/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Parallel Parking Assistance Control Module, Parking Aid Button, Parallel Parking Assistance Button, Parking Aid Warning Buzzer





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E266 - Parking Aid Button Parking Aid Button -E266-

E581 - Parallel Parking Assistance Button Parallel Parking assistance Button -E581-

H15 - Rear Parking Aid Warning Buzzer Parking Aid System Overview

H22 - Front Parking Aid Warning Buzzer Parking Aid System Overview

J519 - Vehicle Electrical System Control Module Control Modules in Interior

J791 - Parallel Parking Assistance Control Module, left, beside instrument Cluster Control Modules in Interior Parallel Parking Assistance Control Module -J791-

K136 - Parking Aid Indicator Lamp

K241 - Parallel Parking Assistance Indicator Lamp

L76 - Push Button Illumination

SC19 - Fuse 19 (on fuse panel C)

T2ap - Double Connector

T2ar - Double Connector

T6al - 6-Pin Connector, brown

T12w - 12-Pin Connector, brown

T12i - 12-Pin Connector, black

T16a - 16-Pin Connector, brown

(42) - Ground Connection (beside steering column) Overview Of Ground Connections in Interior

(238) - Ground Connection 1 (in passenger compartment wiring harness)

(277) - Ground Connection 3 (in passenger compartment wiring harness)

(396) - Ground Connection 31 (in main wiring harness)

(639) - Ground Connection (on left A-pillar) Overview Of Ground Connections in Interior

(687) - Ground Connection 1 (on center tunnel) Overview Of Ground Connections in Interior

(B135) - Connection 1 (15a) (in interior wiring harness)

(B340) - Connection 1 (58d) (in main wiring harness)

Next Diagram 21/3 (Tracks 15-28)
