Rear Bass Speaker

Rear Bass Speaker

• Removing and installing on the left and right sides is identical.

Removing

Perform the following steps before starting:

- Turn off the ignition and all electrical consumers and remove the key.

The door trim panel must first be removed in order to access the speaker..

- Loosen and remove the connector locking mechanism from the speaker.

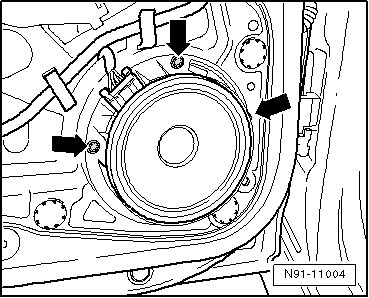

- Remove the 4 bolts - arrows - and then remove the speaker.






Installing

Install in reverse order of removal.
