Door Window

Door Window

Removing

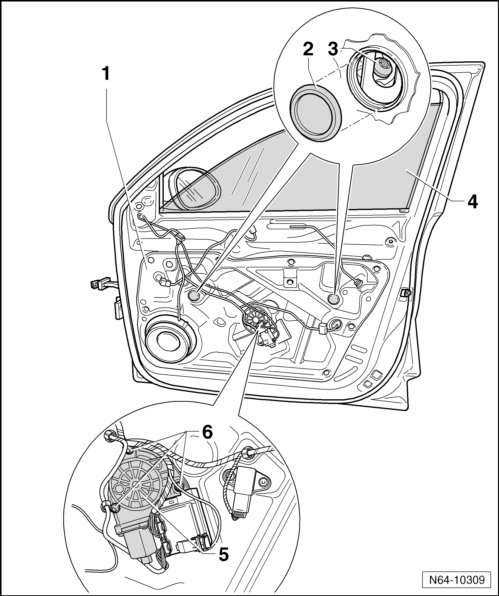

• Removing and installing is described only for the right door window. Removing and installing the left door window is derived accordingly from this.

• Bolts - 3 - have a left-hand thread.






- Remove front door trim.

- Pry out cover caps - 2 -.

- Lower door window until clamping screws - 3 - of door window are accessible.

- Loosen bolts - 3 - (do not remove. left-hand thread) and press clamping brackets apart.

• If the work step is not possible due to a malfunction via the electrical window regulator - 5 -, window regulator motor - 6 - can be unscrewed to be able to slide window down.

- Raise rear door window - 1 - and swing out of door toward front in - direction of arrow -.





Installation

- Swivel door window - 1 - into door in - direction of arrow -. Make sure the door window is inserted correctly into the window guide - 2 -.





- Without using pressure, guide door window into clamping brackets - arrow a -.





- Align the door window glass - 1 - to the window frame - 2 -- arrow b -.






- Tighten clamping screws - 3 - (quantity: 2 left-hand thread), tightening specification: 8 Nm.

• Bolts - 3 - have a left-hand thread.

- Continue by performing the steps used in removal in reverse order.

• Check the window function before installing the door trim.
