Front Door Window Motor: Service and Repair

Window Regulator Motor

Removing






- Remove front door trim.

- Fix window using adhesive tape so that it does not slip down.

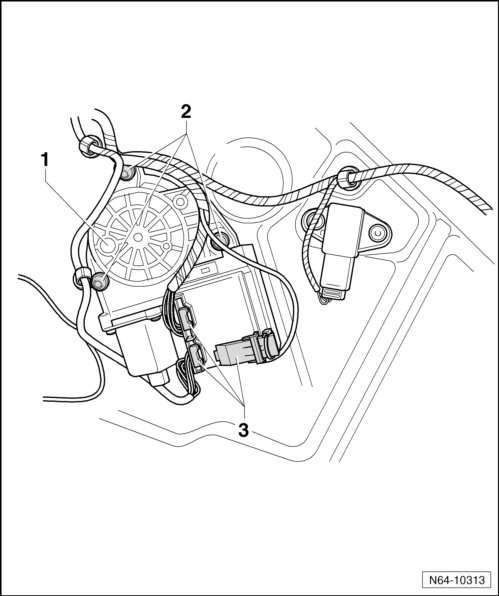

- Disconnect all harness connectors - 3 -.

- Remove the three bolts - 2 -.

- Remove window regulator motor with control module - 1 - from subframe.

Installation






- Place window regulator motor on and pull door window lightly up and down so that splines are located better between motor and cable drum.

Tightening specification for window regulator motor screws - 2 -: 3.5 Nm

- Let window regulator drive twice upward and downward to stop respectively. By doing this, window regulator motor is normed and ready for operation and activates pinch protection.

- Continue by performing the steps used in removal in reverse order.
