Drive Axle Overview

Drive Axle Overview

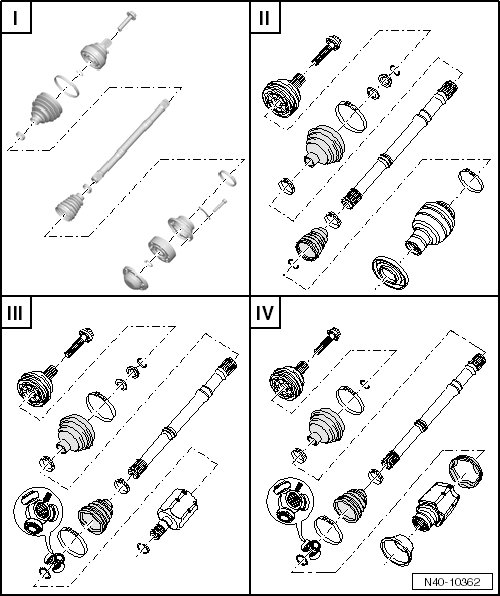

I - Refer to => [ Drive Axle Assembly Overview, with Bolted CV Joint VL 107 ] Drive Axle Assembly Overview, with Bolted CV Joint VL 107.

II - Refer to => [ Drive Axle Assembly Overview, with Mounted CV Joint VL107 ] Drive Axle Assembly Overview, with Mounted CV Joint VL107.

III - Refer to => [ Drive Axle Assembly Overview, with Triple Roller Joint AAR3300i ] Drive Axle Assembly Overview, With Triple Roller Joint AAR3300i.

IV - Refer to => [ Drive Axle Assembly Overview, with Triple Roller Joint AAR3300i, 09M Automatic Transmission, 6-Speed, AWD ] Drive Axle Assembly Overview, with Triple Roller Joint AAR3300i, 09M A/T, 6-Speed, AWD.

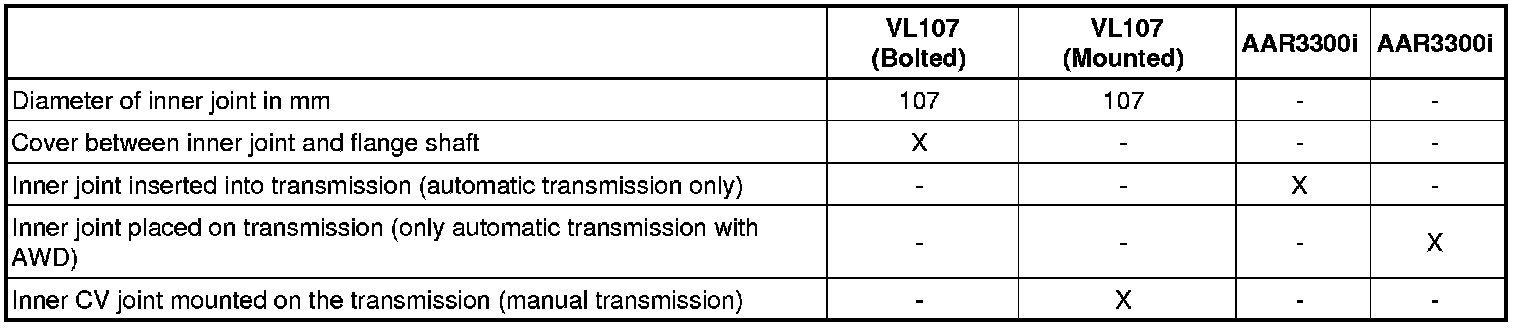

Difference of Drive Axles in Installed Condition
