Window Shade and Sunroof Button

Window Shade and Sunroof Button

Removing

- Remove interior lamp. Refer to => [ Front Interior and Reading Lamps ] Front Interior and Reading Lamps.

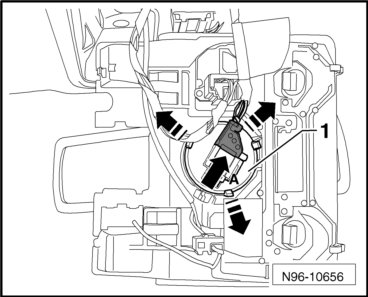

- Release and disconnect the harness connection - arrow A -.






- Release the retaining tabs - arrows - and remove the button - 1 - from the installation frame.

Installing

Install in reverse order of removal.
