Roof Rail, Assembly Overview

Roof Rail, Assembly Overview

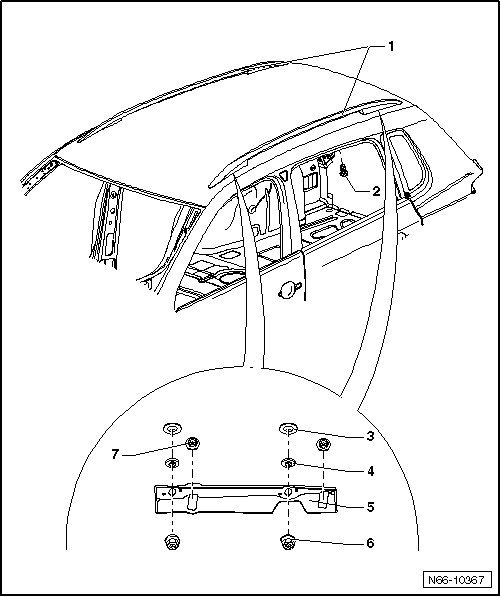

1 Roof rail

2 Bolt

3 Upper conical washer

4 Lower conical washer

5 Angle bracket

• Removing and installing, refer to => [ Roof Rail Angle Bracket ] Roof Rail Angle Bracket

• install a new angle bracket => [ New angle bracket, installing ] Roof Rail Angle Bracket

6 Hex nut

• Roof rail threaded connection

• 4 pieces per side

• Tightening specification: 10 Nm

7 Bolt

• Angle bracket threaded connection

• Quantity: 2 per bracket

• 10 Nm
