Sun Visors

Sun Visors

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

- Switch off ignition.

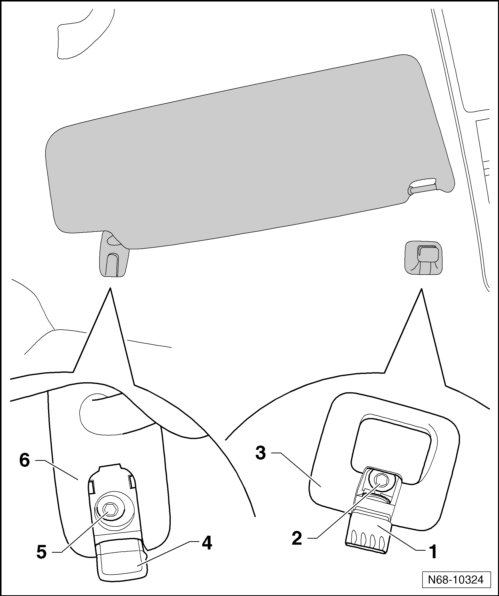

• If only the sun visor is to be removed, the bolt - 2 - and the sun visor mount - 3 - do not have to be removed.

- Using a small screwdriver, open cover caps - 1 - and - 4 -.

- Remove the bolts - 2 - and - 5 - (2 Nm).

- Pull sun visor mount - 3 - out of mount.

- Carefully pull sun visor mount - 6 - out of mount.


Hold the sun visor. Do not let it hang by the wiring harness.

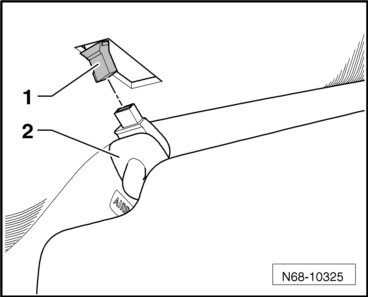

- Carefully disconnect the connector - 1 - from the sun visor - 2 - without pulling on the flat wire.






Installation

- Install in reverse order of removal.
