Console in Headliner

Console in Headliner

Removing

- Switch off ignition.

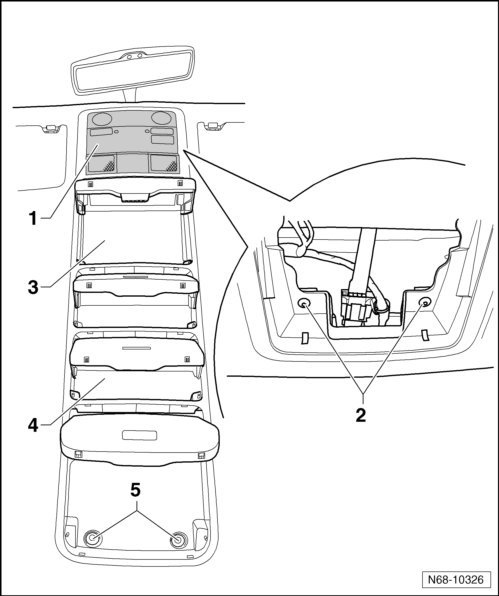

- Remove the front interior and reading lamps - 1 -.

- Remove the two bolts - 2 - (3 Nm).

- Remove the two screws (3 Nm) in the storage compartment - 3 -.

- Remove the screw (3 Nm) in the storage compartment - 4 -.

- Remove the two bolts - 5 - (3 Nm).

- Pull the console diagonally downward out of the brackets in the headliner. Begin at the rear of the console.

- Pull the console near the interior and reading lamps to the rear out of the brackets.






Installation

- Install in reverse order of removal.
