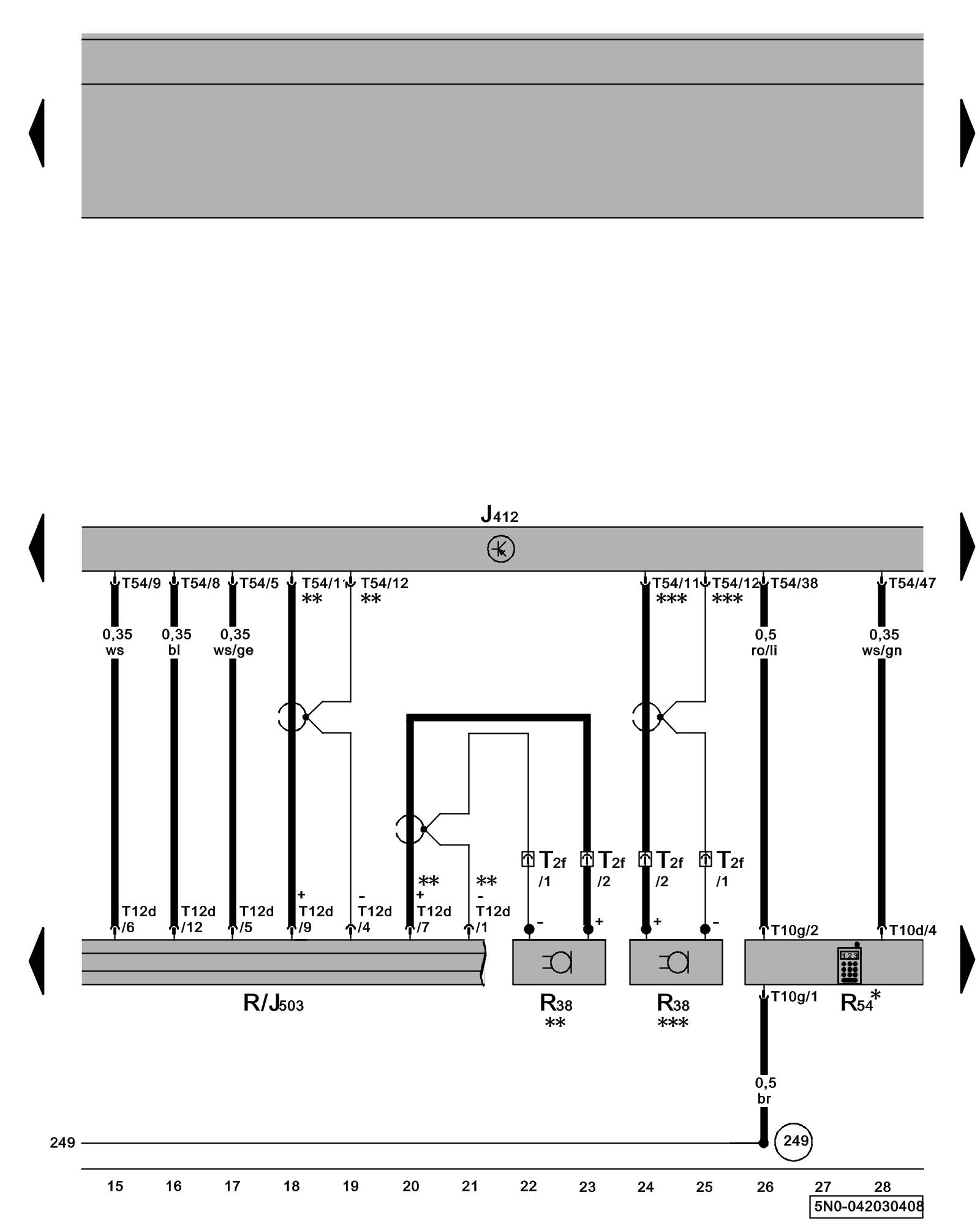

Diagram 42/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone Microphone, Cellular Telephone, Radio, Operating Electronics and Telephone Control Module, Radio/Navigation Display Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J412 - Operating Electronics and Telephone Control Module, in front right footwell Control Modules in Pass Compartment

J503 - Radio/Navigation Display Control Module Radio Systems Overview

R - Radio Control Modules in Pass Compartment

R38 - Telephone Microphone Radio Systems Overview

R54 - Cellular Telephone Radio Systems Overview

T2f - Double Connector, black Component Locations

T10g - 10-Pin Connector, black

T12d - 12-Pin Connector, green

T54 - 54-Pin Connector

(249) - Ground Connection 2 (in passenger compartment wiring harness)

* - Component not included in telephone preparation

** - Only models with radio/navigation system

*** - Only models without radio/navigation system
