Overhaul

Shift Forks

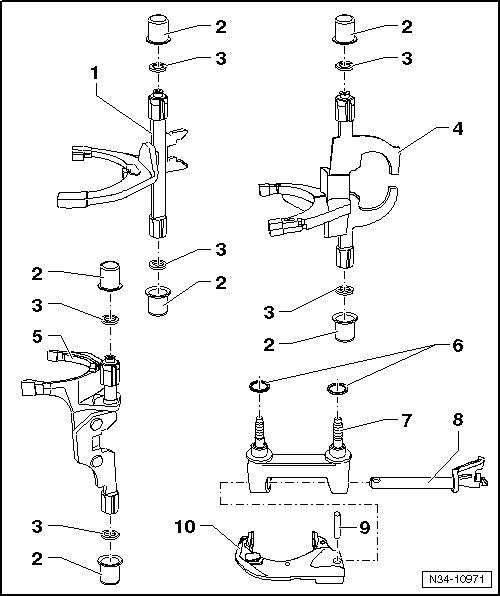

1 Selector Shaft with Selector Fork, for 1st and 2nd Gear

2 Bushing

• For the selector shaft with selector fork.

• Removing and installing from the transmission housing. Refer to => [ Transmission Housing ] Transmission Housing.

• Removing and installing from the clutch housing. Refer to => [ Clutch Housing ] Clutch Housing.

3 Insulation

• Installed position, refer to => [ Insulation Installed Position ].

4 Selector Shaft with Selector Fork, for 3rd and 4th Gear

5 Selector Shaft with Selector Fork, for 5th and 6th Gear.

6 O-ring

• Installed in some transmissions.

• Discontinued shortly after the start of production.

7 Bracket

• for the reverse gear selector shaft with selector fork.

8 Mounting Pin

9 Spring Pin

• Always replace

• Remove and install using a drift.

10 Selector Fork, Reverse Gear

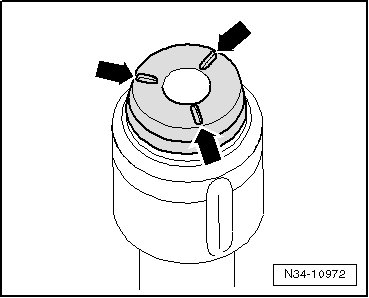

Insulation Installed Position





The recesses - arrows - point away from the selector shaft.
