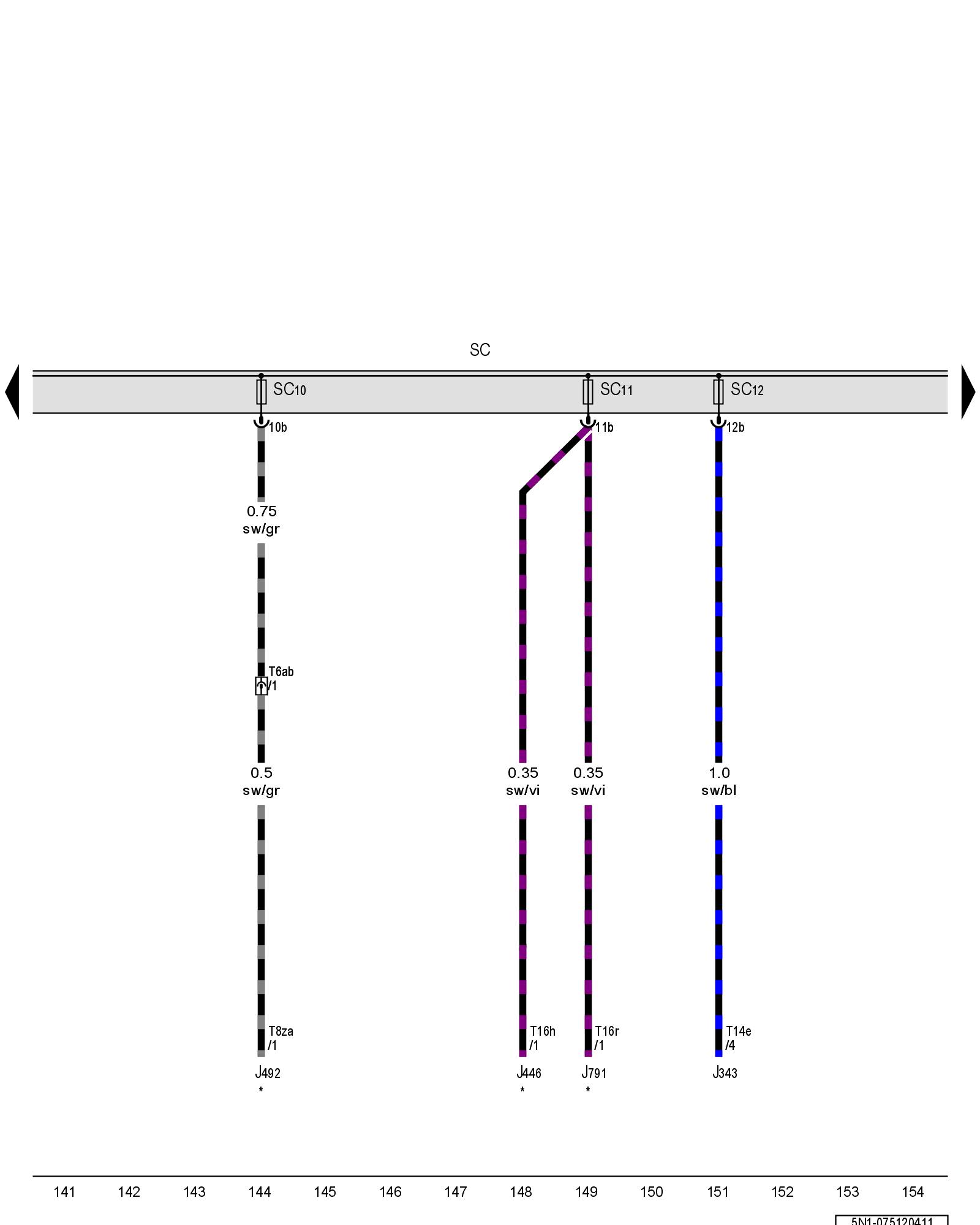

Diagram 75/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J343 - Left HID headlamp control module Control Modules in Engine Compartment

J446 - Parking aid control module Control Modules in Luggage Comp. Parking Aid Control Module -J446-

J492 - All wheel drive control module Control Modules in Luggage Comp.

J791 - Parallel parking assistance control module Control Modules in Pass Compartment Parallel Parking Assistance Control Module -J791-

SC - Fuse panel C Overview Of Fuses

SC10 - Fuse 10 (on fuse panel C) Overview Of Fuses

SC11 - Fuse 11 (on fuse panel C) Overview Of Fuses

SC12 - Fuse 12 (on fuse panel C) Overview Of Fuses

T6ab - 6-pin connector Component Locations

T8za - 8-pin connector

T14e - 14-pin connector

T16h - 16-pin connector

T16r - 16-pin connector

* - Depending on equipment

Previous Diagram 75/11 (Tracks 127-140)

Next Diagram 75/13 (Tracks 155-168)
