Ambient Temperature Sensor / Switch HVAC: Service and Repair

Outside Air Temperature Sensor (G17)

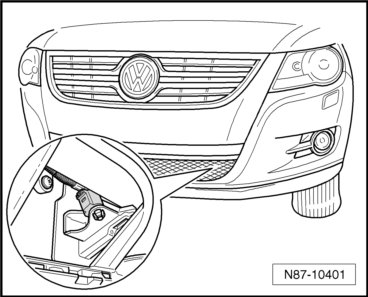

• The outside air temperature sensor is located behind the air grille in the center.

Removing

- Remove the air grille from out of the bumper cover retainer.

- Unclip the outside air temperature sensor - 1 - from the bracket and loosen the electric connector.






Installing

- Install the outside air temperature sensor in reverse order of removal.
