Antenna Control Module: Service and Repair

Antenna Selection Control Module

Removal

Do the following before starting the procedure:

- Turn off the ignition and all electric consumers and remove the key.

- Slide right front seat into the rearmost position.

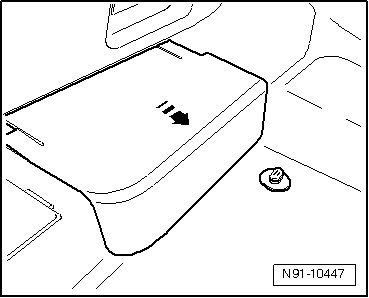

- Remove cover under seat in - direction of arrow -.

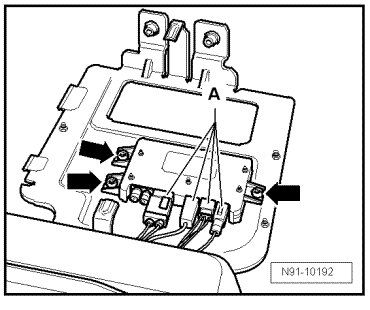

- Release and disconnect electrical connection - A -.






- Remove clips - arrows - and remove control module.






Installation

Install in reverse order of removal.
