Diagram 40/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

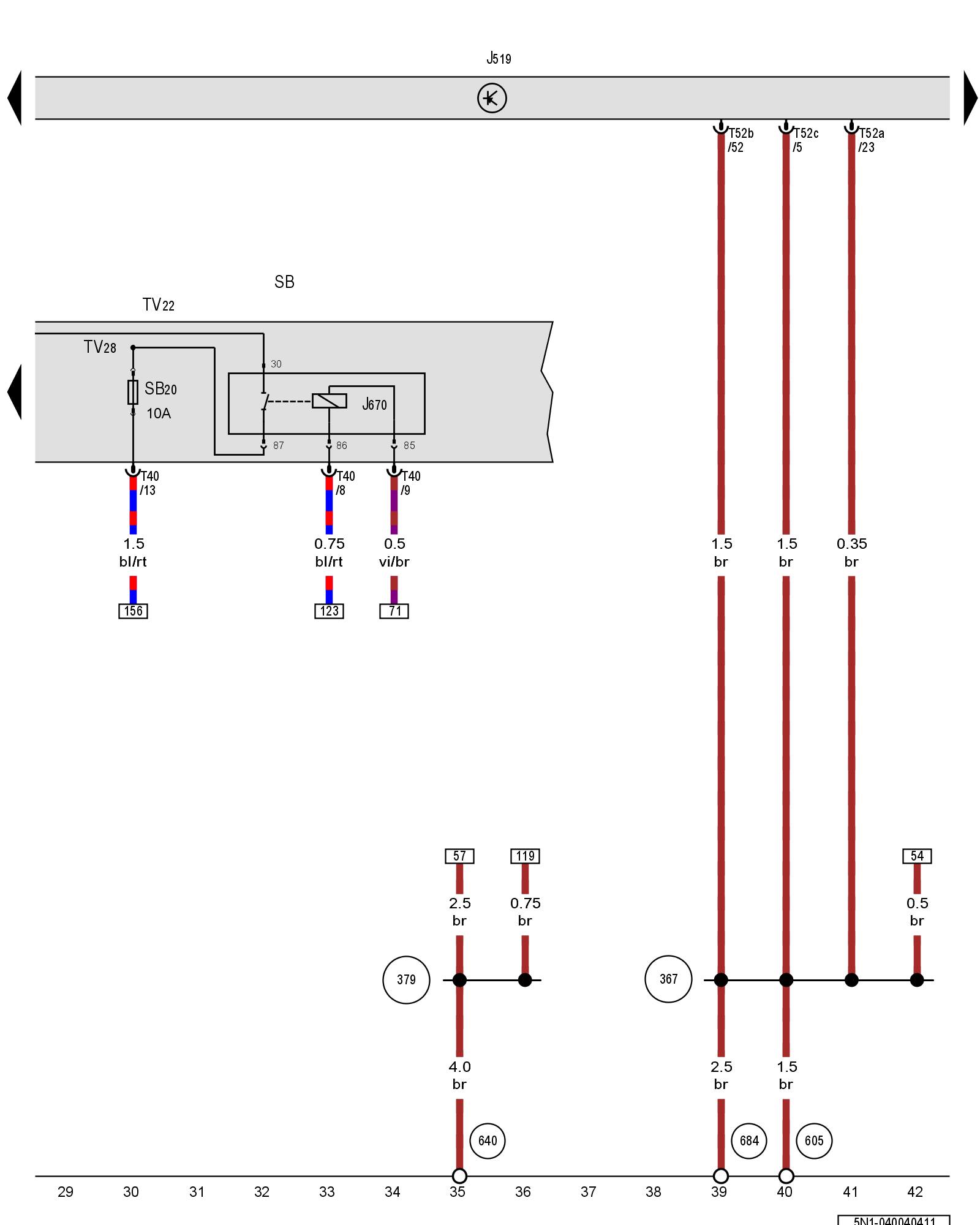

Vehicle electrical system control module, Motronic engine control module power supply relay 2, Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control Modules in Pass Compartment

J670 - Motronic engine control module power supply relay 2 Relay Carrier Overview

SB - Fuse panel B Overview Of Fuses

SB20 - Fuse 20 (on fuse panel B) Overview Of Fuses

TV22 - Terminal 30 wire junction 2

TV28 - Terminal 30 wire junction 3

T40 - 40-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(367) - Ground connection 2 (in main wiring harness)

(379) - Ground connection 14 (in main wiring harness)

(605) - Ground connection on upper steering column Overview Of Ground Connections in Rear Seats

(640) - Ground connection 2 in engine compartment, left Overview Of Ground Connections in Engine Compartment

(684) - Ground connection on left front side member Overview Of Ground Connections in Rear Seats

Previous Diagram 40/3 (Tracks 15-28)

Next Diagram 40/5 (Tracks 43-56)
