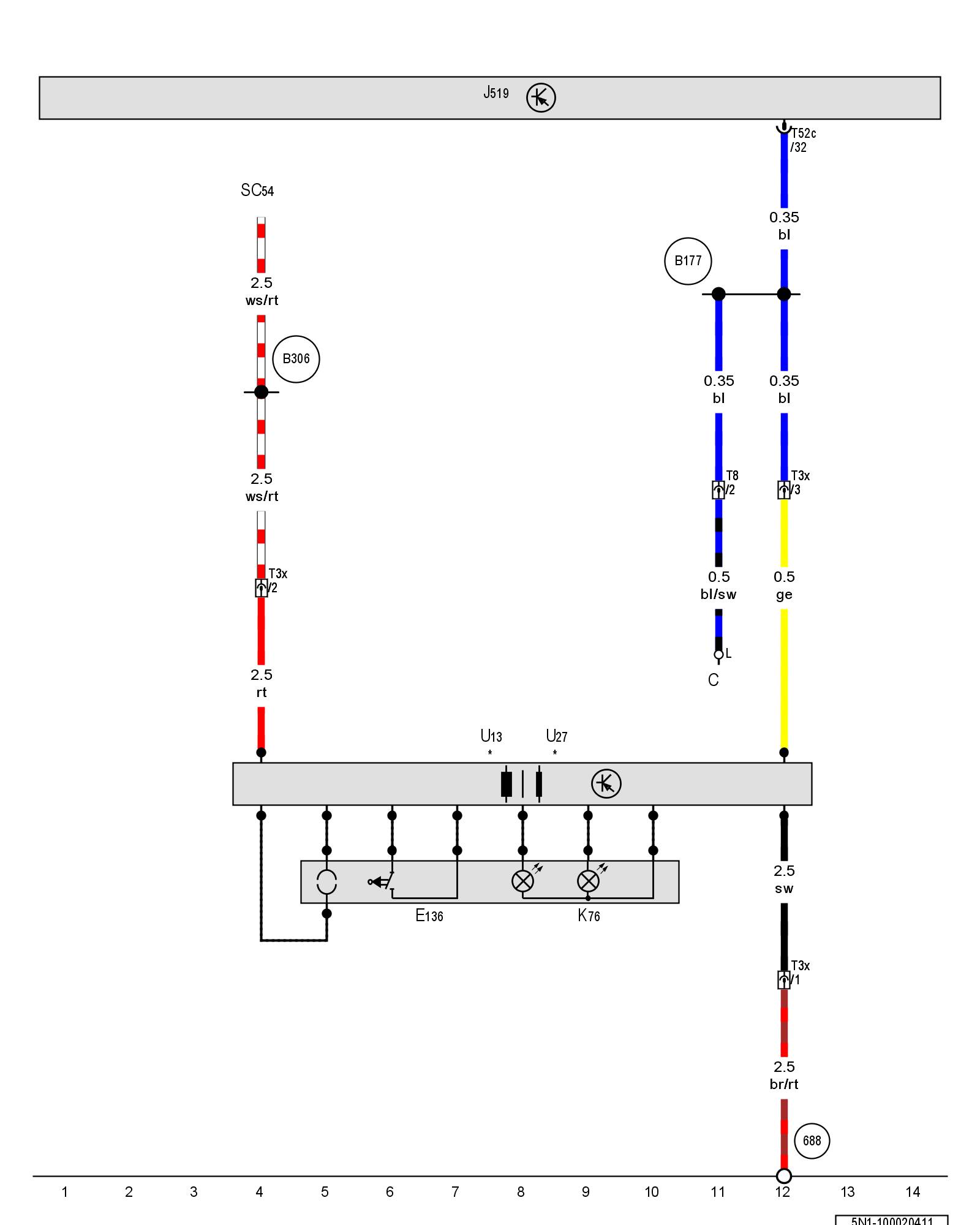

Diagram 100/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Inverter switch, Vehicle electrical system control module, Socket indicator lamp, Converter with socket, 12 V-230 V, Converter with socket, 12 V-115 V





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

C - Generator

E136 - Inverter switch

J519 - Vehicle electrical system control module Control Modules in Pass Compartment

K76 - Socket indicator lamp

SC54 - Fuse 54 (on fuse panel C) Overview Of Fuses

T3x - 3-pin connector

T8 - 8-pin connector Component Locations

T52c - 52-pin connector

U13 - Converter with socket, 12 V-230 V

U27 - Converter with socket, 12 V-115 V

(688) - Ground connection 2 on center tunnel Overview Of Ground Connections in Rear Seats

(B177) - Connection (61) (in interior wiring harness)

(B306) - Positive connection 10 (30) (in main wiring harness)

* - Depending on equipment
