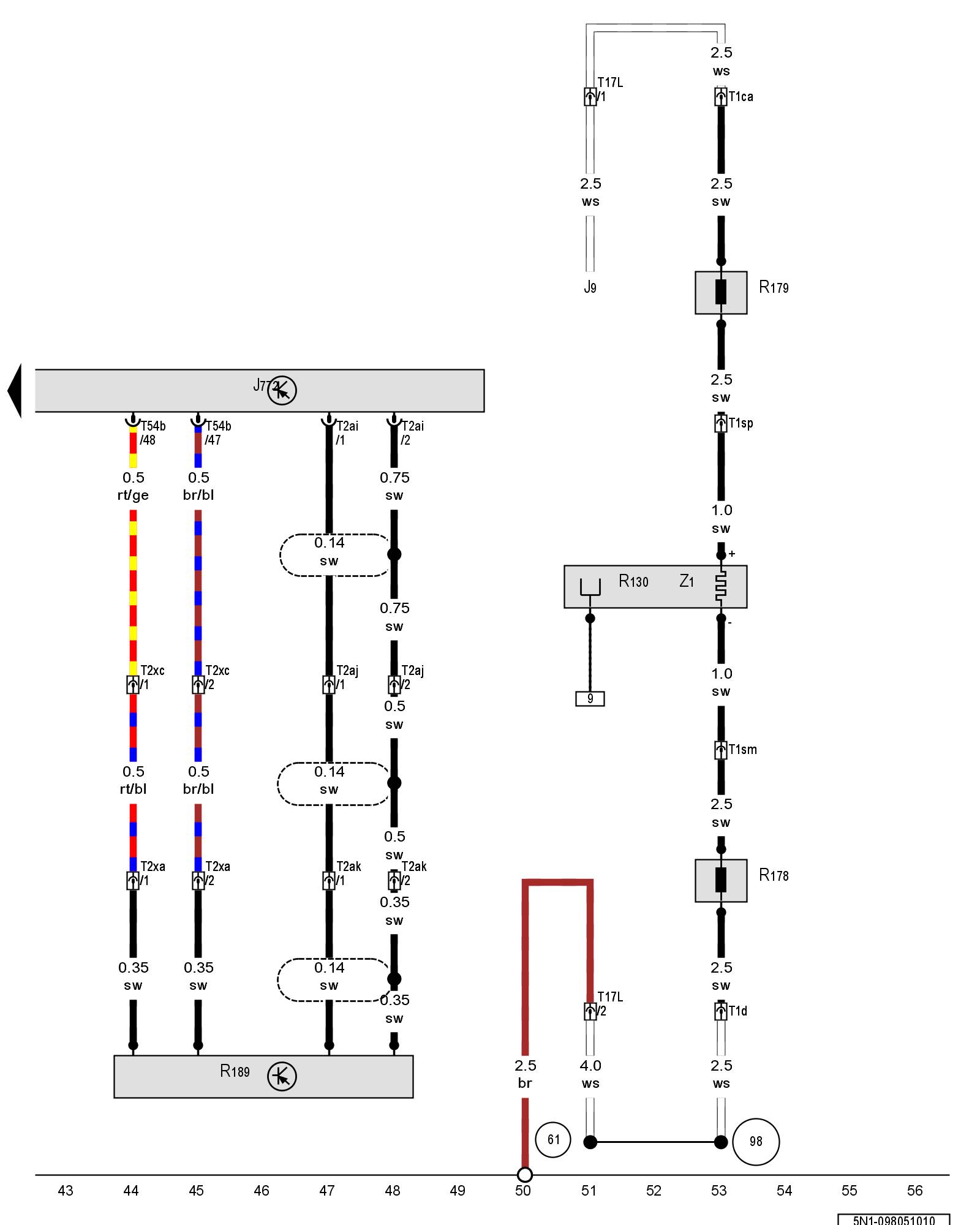

Diagram 98/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Rearview camera system control module, Rear window antenna 1, FM frequency filter in negative wire, FM frequency filter in positive wire, Rearview camera





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J9 - Rear window defogger relay

J772 - Rearview camera system control module Control Modules in Luggage Comp.

R130 - Rear window antenna 1 Radio Systems Overview

R178 - FM frequency filter in negative wire Radio Systems Overview

R179 - FM frequency filter in positive wire Radio Systems Overview

R189 - Rearview camera Rear View Camera System Overview

T1ca - Single connector

T1d - Single connector

T1sm - Single connector

T1sp - Single connector

T2ai - Double connector

T2aj - Double connector Component Locations

T2ak - Double connector Component Locations

T2xa - Double connector Component Locations

T2xc - Double connector Component Locations

T17L - 17-pin connector Component Locations

T54b - 54-pin connector

Z1 - Rear window defogger

(61) - Ground connection on left C-pillar Overview Of Ground Connections in Luggage Comp.

(98) - Ground connection (in rear lid wiring harness)

Previous Diagram 98/4 (Tracks 29-42)
