Front Seat Heating Control Module







Front Seat Heating Control Module

• The control module is installed under the seat in the front.

Removing

- Switch off ignition.

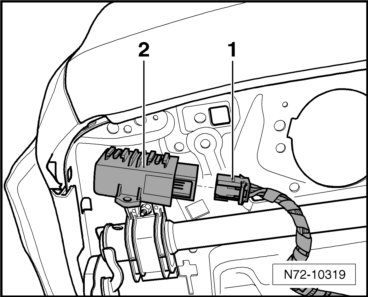

- Disconnect the wiring harness - 1 - from the control module - 2 -.






- Turn the control module clockwise and remove it from the seat frame.

Installation

- Install in reverse order of removal.
