Diagram 54/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


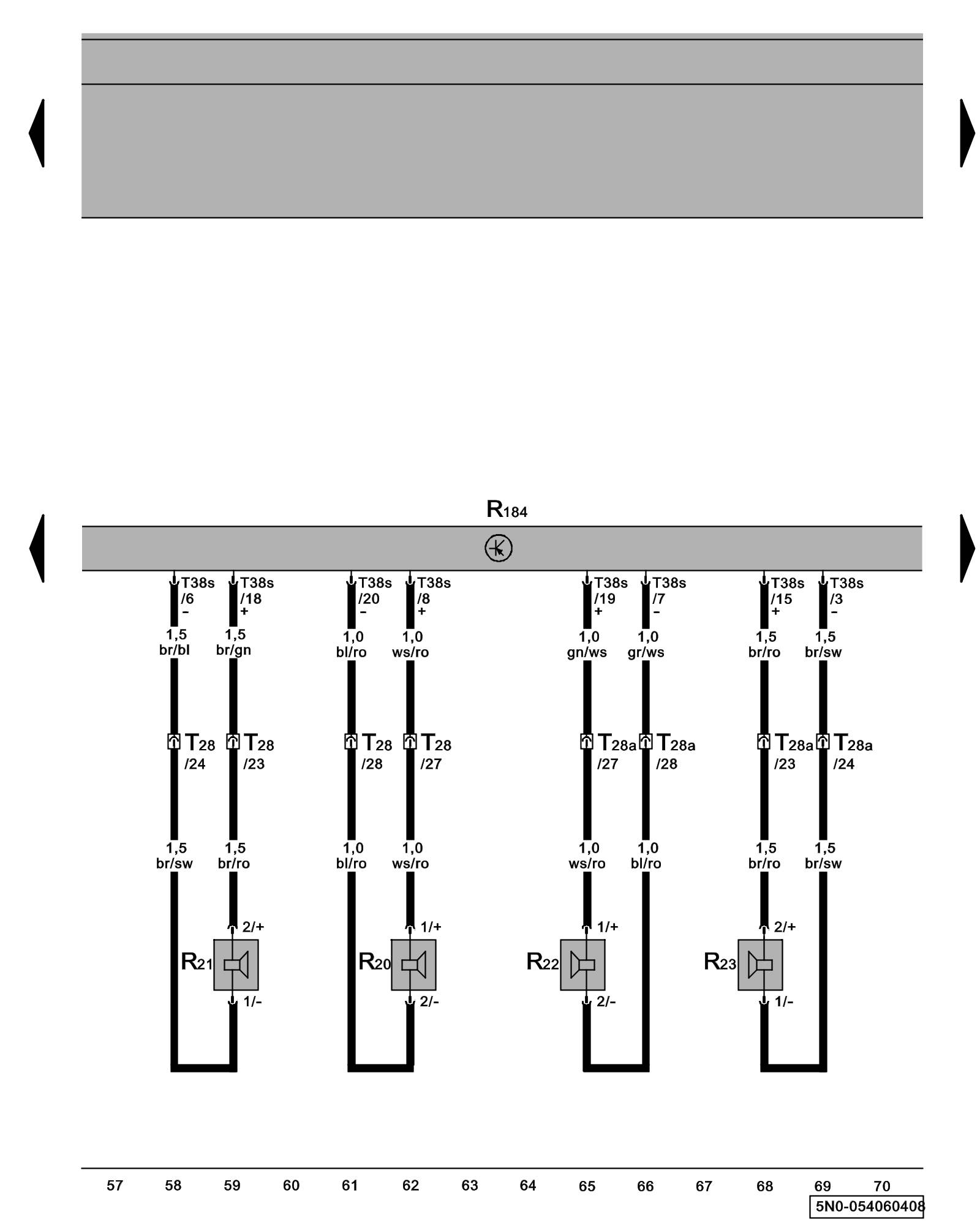

Front Speaker, Digital Sound System Amplifier





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R20 - Left Front Treble Speaker Radio Systems Overview

R21 - Left Front Bass Speaker Radio Systems Overview

R22 - Right Front Treble Speaker Radio Systems Overview

R23 - Right Front Bass Speaker Radio Systems Overview

R184 - Digital Sound System Amplifier Control Modules in Pass Compartment

T28 - 28-Pin Connector, behind left lower A-pillar trim Component Locations

T28a - 28-Pin Connector, behind right lower A-pillar trim Component Locations

T38s - 38-Pin Connector
