Front Window Regulator Assembly Overview, Convertible

Door Windows

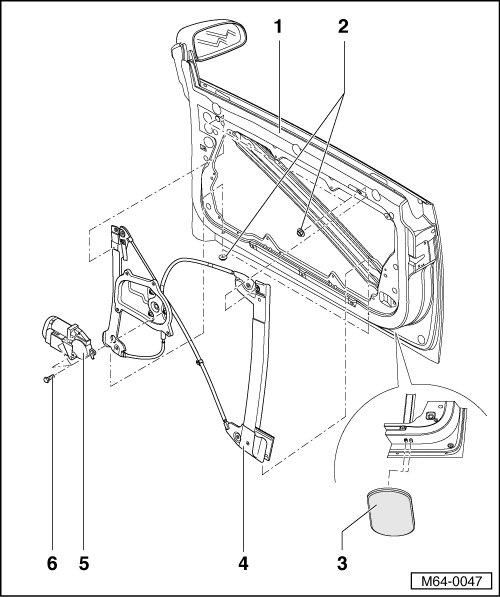

Front Window Regulator Assembly Overview, Convertible





1 Door

2 Combination Nut

• Qty. 4

3 Buffer Plugs

4 Door Window Regulator

5 Window Regulator Motor

6 Bolt

• Qty. 3

Removing

- Remove subframe. Refer to => [ Subframe, Convertible ]. Subframe, Convertible

- Remove door window from window regulator. Refer to => [ Front Door Window, Convertible ]. Front Door Window, Convertible





- Remove window regulator motor - 5 - from window regulator.

- Remove plugs - 3 -.

- Remove combination nut - 2 -.

- Unclip window recess cable.

- Move window regulator to center of door and remove.

Installing

- Installation is performed in the reverse order of removal.
