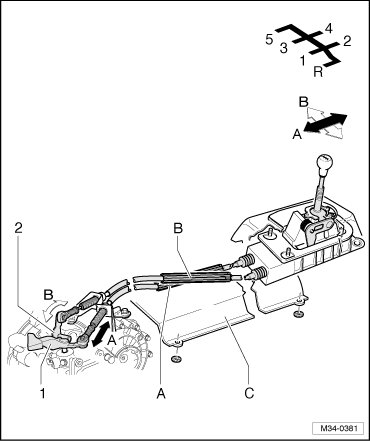

Shift Mechanism Installation Position

Shift Mechanism Installation Position

- Arrow A - Shift movement

- Arrow B - Selector movement





A - Shift cable for gear movement

B - Selector cable for selector movement

C - Heat shield

• Remove before removing shift mechanism

1 - Transmission shift lever

2 - Relay lever
