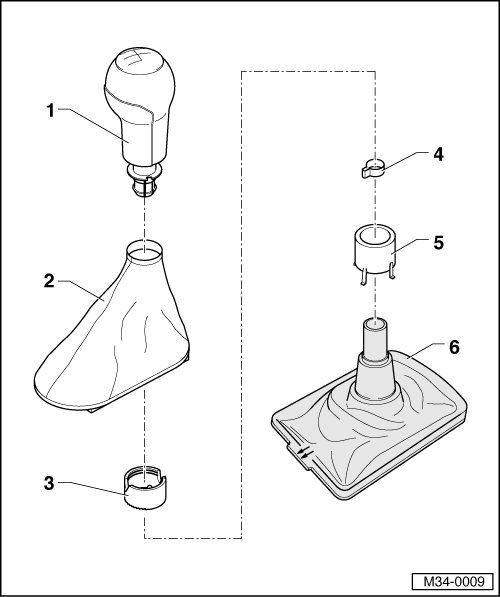

Shift Knob and Boot Assembly Overview

Shift Knob and Boot Assembly Overview





1 Shift knob

• Remove and install together with boot => [ (Item 2) Boot ]

2 Boot

• Separate from shift knob => [ Boot, Disconnecting from Shift Lever and Installing on Shift Knob ] Boot, Disconnecting From Shift Lever and Installing on Shift Knob.

• Before installing, assemble with shift knob => [ Boot, Disconnecting from Shift Lever and Installing on Shift Knob ] Boot, Disconnecting From Shift Lever and Installing on Shift Knob.

• Remove and install together with shift knob

3 Clamping sleeve

4 Clamp

• For securing shift knob to shift lever

• Secure on shift knob using hose clamp pliers ( V.A.G 1275) => [ (Item 1) Shift knob ]

5 Socket

• Clip into rubber sound insulation

6 Rubber sound insulation

• Installation position: Arrows point in direction of travel
