Boot, Disconnecting From Shift Lever and Installing on Shift Knob

Boot, Disconnecting from Shift Lever and Installing on Shift Knob

Special tools, testers and auxiliary items required

• Hose clamp pliers (V.A.G 1275)

- Turn inner side of cover toward outside.

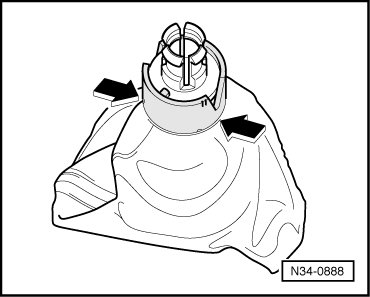

- Carefully press off clamping sleeve - arrows - using a screwdriver, while doing so pull off shift knob.





Assembly is performed in reverse order of removal. Note the following:

- Insert shift knob into cover.

- Press clamping sleeve on shift knob and engage.

- Install shift knob and cover together.
