Differential Assembly Overview

Differential Assembly Overview

• Heat inner race/tapered roller bearing to approximately 100° C before installing.

• Always replace both taper roller bearings together as a set.

• Adjust differential => [ Differential, Adjusting ] Differential, Adjusting, when replacing tapered roller bearing, differential housing, transmission housing and clutch housing.

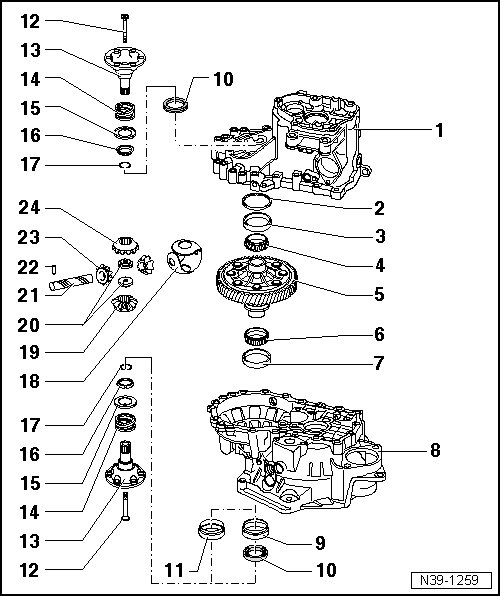

1 Transmission housing

2 Shim

• For differential

• Determining thickness => [ Differential, Adjusting ] Differential, Adjusting.

3 Tapered roller bearing outer race

• Pulling out => [ Pulling outer race/tapered roller bearing out
of transmission housing ] Differential

• Pressing in => [ Pressing outer race/tapered roller bearing into
transmission housing ] Differential

4 Tapered roller bearing inner race

• Pulling off => [ Pulling off inner races/tapered roller bearing ] Differential

• Pressing on => [ Pressing on inner races/tapered roller bearing ] Differential

5 Differential housing

• With drive gear for final drive

• Thrust washer union installed to differential housing => [ On some transmissions the thrust washer union
was made with a ridge in area of holes. ] Differential

6 Tapered roller bearing inner race

• Pulling off => [ Pulling off inner races/tapered roller bearing ] Differential

• Pressing on => [ Pressing on inner races/tapered roller bearing ] Differential

7 Tapered roller bearing outer race

• Pressing out => [ Pressing tapered roller bearing outer race out
from clutch housing ] Differential

• Pressing in => [ Pressing outer race/tapered roller bearing into
clutch housing ] Differential

8 Clutch housing

9 Sleeve

• For mounting of seal => [ (Item 10) Seal ]

• Removing and installing => [ Transmission and Clutch Housing ] Transmission and Clutch Housing.

10 Seal

• Replace with transmission installed => [ Removal and Installation ] Table of Contents.

11 Oil seal and sleeve as one part

• If seal is damaged, replace seal and sleeve together => [ Removal and Installation ] Table of Contents.

12 Countersunk screw, 25 Nm

• Screw together with threaded piece => [ (Item 20) Threaded piece ]

13 Flange shaft

• Removing and installing => [ Removal and Installation ] Table of Contents.

14 Spring for flange shaft

• Rear flanged shaft installed

15 Thrust washer

• Installed location => [ Installation position of thrust washer for
tapered ring ] Differential

16 Tapered ring

• With grooves to engage thrust washer

• Installation location: Taper toward differential housing

17 Circlip

• Holds tapered ring, thrust washer and compression spring in position with flanged shaft removed

18 Thrust washer union

• Install coated with gear oil

• On some transmissions, the thrust washer union was made with a ridge => [ On some transmissions the thrust washer union
was made with a ridge in area of holes. ] Differential

19 Large differential bevel gear

• Installing => [ Installing differential planetary gears ] Differential

20 Threaded piece

• Installing => [ Installing differential planetary gears ] Differential

21 Differential bevel gear axle

• Driving out using drift

• Installing => [ Installing differential planetary gears ] Differential

22 Roll pin

• For securing axle for differential bevel gears

• Removing and installing => [ Removing and installing roll pin for differential
bevel gear axle ] Differential

23 Small differential bevel gear

• Installing => [ Installing differential planetary gears ] Differential

24 Large differential bevel gear

• Installing => [ Installing differential planetary gears ] Differential
