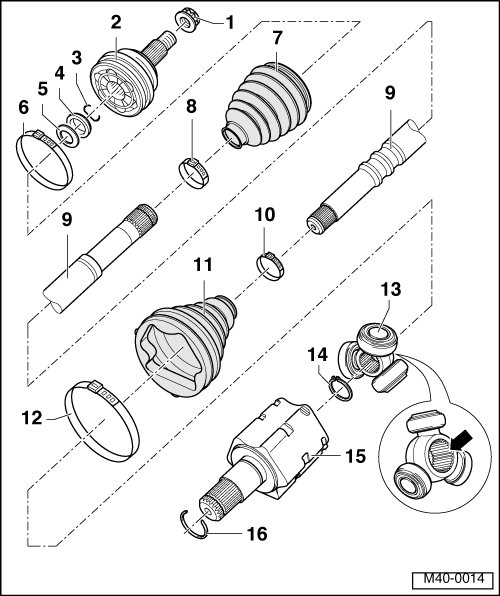

Drive Axle with Triple Roller Joint AAR 3300i Assembly Overview
1 Self-locking 12 point nut
• Tightening => [ Tighten 12 point nut to 200 Nm and release
a half a rotation. ] Drive Axle With Triple Roller Joint AAR 3300I.
• Remove any corrosion in threads of outer joint before threading nut on.
• Always replace
2 Outer CV joint
• Replace only as complete unit
• Removing => [ Removing outer constant velocity joint ] Drive Axle With CV Joint
• Installing: drive onto shaft using plastic hammer, until expanded securing ring contracts
• Greasing Drive Axle With Triple Roller Joint AAR 3300I
• Checking => [ Outer CV Joint ] Outer CV Joint.
3 Circlip
• Always replace after removal
• Insert in groove on shaft
4 Thrust washer
• Installed position => [ Installation position of spring washer and
of thrust washer at outer joint ] Drive Axle With CV Joint
5 Dished washer
• Installed position => [ Installation position of spring washer and
of thrust washer at outer joint ] Drive Axle With CV Joint
6 Clamp
• Always replace after removal
• Tighten using CV joint boot clamp tool (V.A.G 1682 ) => [ Tension the clamp on outer joint ] Drive Axle With CV Joint
7 CV boot
• Check for tears and scuffing
• Material: Hytrel (Polyelastomere)
8 Clamp
• Always replace after removal
• Tightening => [ Tightening clamp on inner joint/small diameter ] Drive Axle With CV Joint
9 Axle shaft
10 Clamp
• Always replace
• Tensioning => [ Tighten small clamp using. ] Drive Axle With Triple Roller Joint AAR 3300I.
11 CV boot for triple roller joint
• Check for tears and scuffing
12 Clamp
• Always replace after removal
• Tensioning => [ Tighten large clamp using. ] Drive Axle With Triple Roller Joint AAR 3300I.
13 Triple roller star with rollers
Chamfer - arrow - faces splines of axle shaft
14 Circlip
• Always replace after removal
• Insert in groove on shaft
15 Joint piece
16 Circlip
• Always replace after removal
• Insert into groove of joint piece
