ATF Cooler Assembly Overview

ATF Cooler Assembly Overview

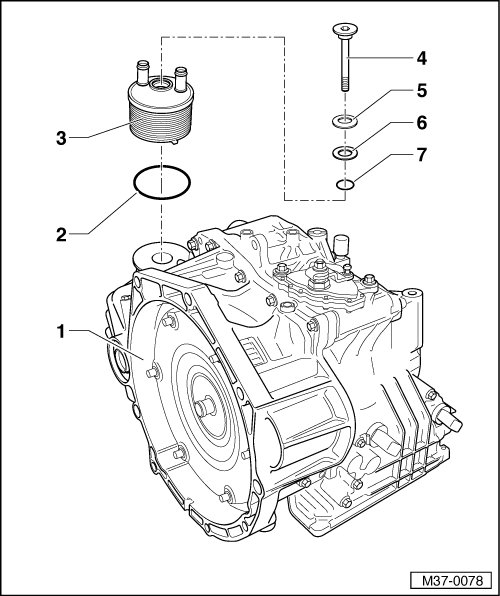

Disassembly and assembly sequence => [ ATF Cooler ] ATF Cooler





1 Transmission housing

2 O-ring

• Always replace

3 ATF cooler

4 Bolt, 36 Nm

5 Dished washer

• Installation position: Must make contact on washer => [ (Item 6) Washer ] , the side bulged outward must point upward

6 Washer

7 O-ring

• Always replace
