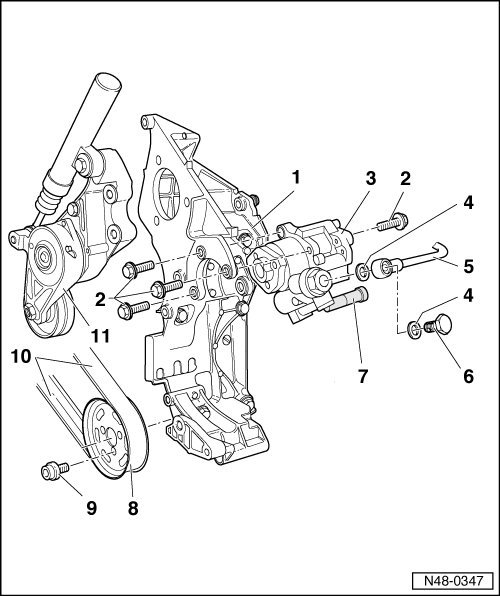

High Mounted Power Steering Pump Assembly Overview

High Mounted Power Steering Pump Assembly Overview





1 Bracket

2 Hex bolt

• M8 x 40

• Tightening specification => [ Power Steering Pump ] [1][2]Power Steering Pump.

3 Power steering pump

• Checking delivery pressure => [ High Mounted Power Steering Pump, Checking Delivery Pressure ] High Mounted Power Steering Pump, Checking Delivery Pressure.

• Before installing, fill with power steering fluid => [ High Mounted Power Steering Pump ] High Mounted Power Steering Pump.

4 Seals

• Replace

5 Pressurized line

6 Banjo fitting

• M16 x 1.5

• Tightening specification => [ Power Steering Pump ] [1][2]Power Steering Pump.

7 Intake hose

8 Belt pulley

9 Socket head bolt

• M8 x 14

• Tightening specification => [ Power Steering Pump ] [1][2]Power Steering Pump.

10 Ribbed belt

• Mark direction of travel before removing

• Removing and belt routing

• Inspection of condition => Ribbed belt: checking condition

11 Ribbed belt tensioner
