2.5L

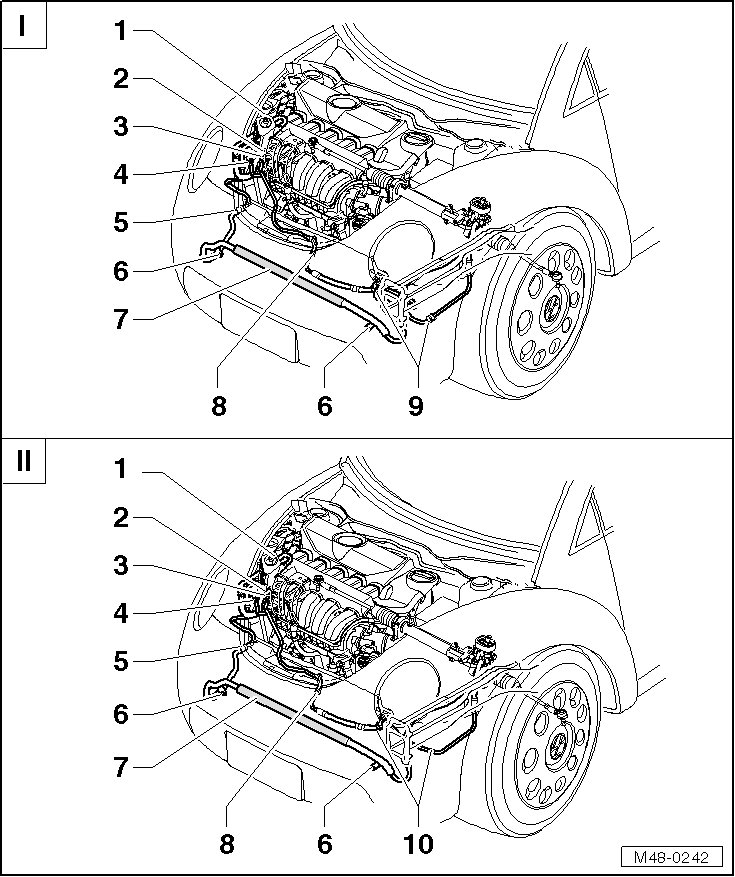

Power Steering System Overview

I - Vehicles with manual transmission

II - Vehicles with automatic transmission





1 Refill tank

• Assembly notes => [ Power Steering Reservoir Assembly Overview ] Service and Repair.

2 Power steering pump

• Checking delivery pressure => [ High Mount Power Steering Pump, Checking Delivery Pressure ] High Mount Power Steering Pump, Checking Delivery Pressure.

• Before installing, fill with power steering fluid => [ High Mount Power Steering Pump ] High Mount Power Steering Pump.

3 Pressurized line mount

• On power steering pump

4 Intake hose mount

• On power steering pump

5 Intake hose mount

• On right longitudinal member

6 Return hose mount

• On longitudinal member

7 Ribbed line cooler

8 Pressurized line mount

• On cylinder block

9 Pressurized line mount

On manual transmission 0A4

• Assembly notes => [ Pressurized Line Mount Overview ] Pressurized Line Mount Overview.

10 Pressurized line mount

On automatic transmission 09G

• Assembly notes => [ Pressurized Line and Return Hose Overview ] Pressurized Line and Return Hose Overview.
