Relay and Fuse Arrangements, from July 2005,







Relay and fuse arrangements, from July 2005,

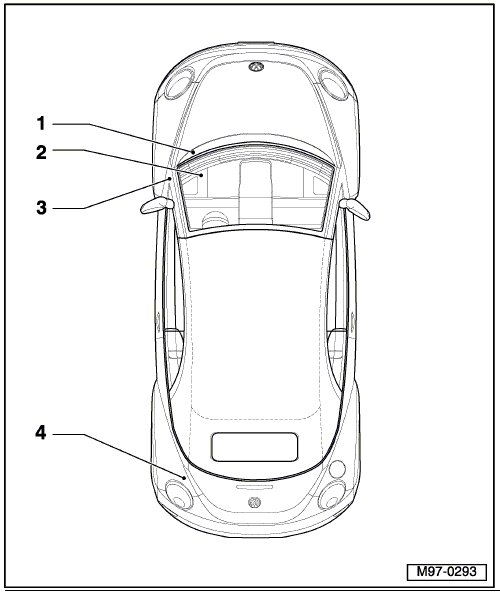

Overview







1 - Fuse arrangements in fuse bracket/battery,
• => Fuse Arrangements in Fuse Bracket / Battery

2 - Relay and fuse arrangements on relay panel
• => Relay and Fuse Arrangements On Relay Panel

2 - Relay arrangements / Fuse arrangements on thirteen position auxiliary relay panel, above relay panel
• => Relay Arrangements On Thirteen Position Auxiliary Relay Panel, Above Relay Panel Fuse Arrangements On Thirteen Position Auxiliary Relay Panel, Above Relay Panel, Continued

3 - Fuse arrangements in fuse panel, instrument panel, left
• => Fuse Arrangements in Fuse Panel, Instrument Panel, Left

4 - Convertible Top Hydraulic Pump Relays , in luggage compartment, left

- J321 - Convertible Top Hydraulic Pump Relay
• => J321 - Convertible Top Hydraulic Pump Relay

- J588 - Convertible Top Hydraulic Pump Relay 2
• => J588 - Convertible Top Hydraulic Pump Relay 2
