Home
>>
Volkswagen
>>
2010
>>
New Beetle Convertible (1Y7) L5-2.5L (BPS)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Fuse Arrangements In Fuse Bracket/Battery, From July 2005
Fuse Arrangements In Fuse Bracket/Battery, From July 2005

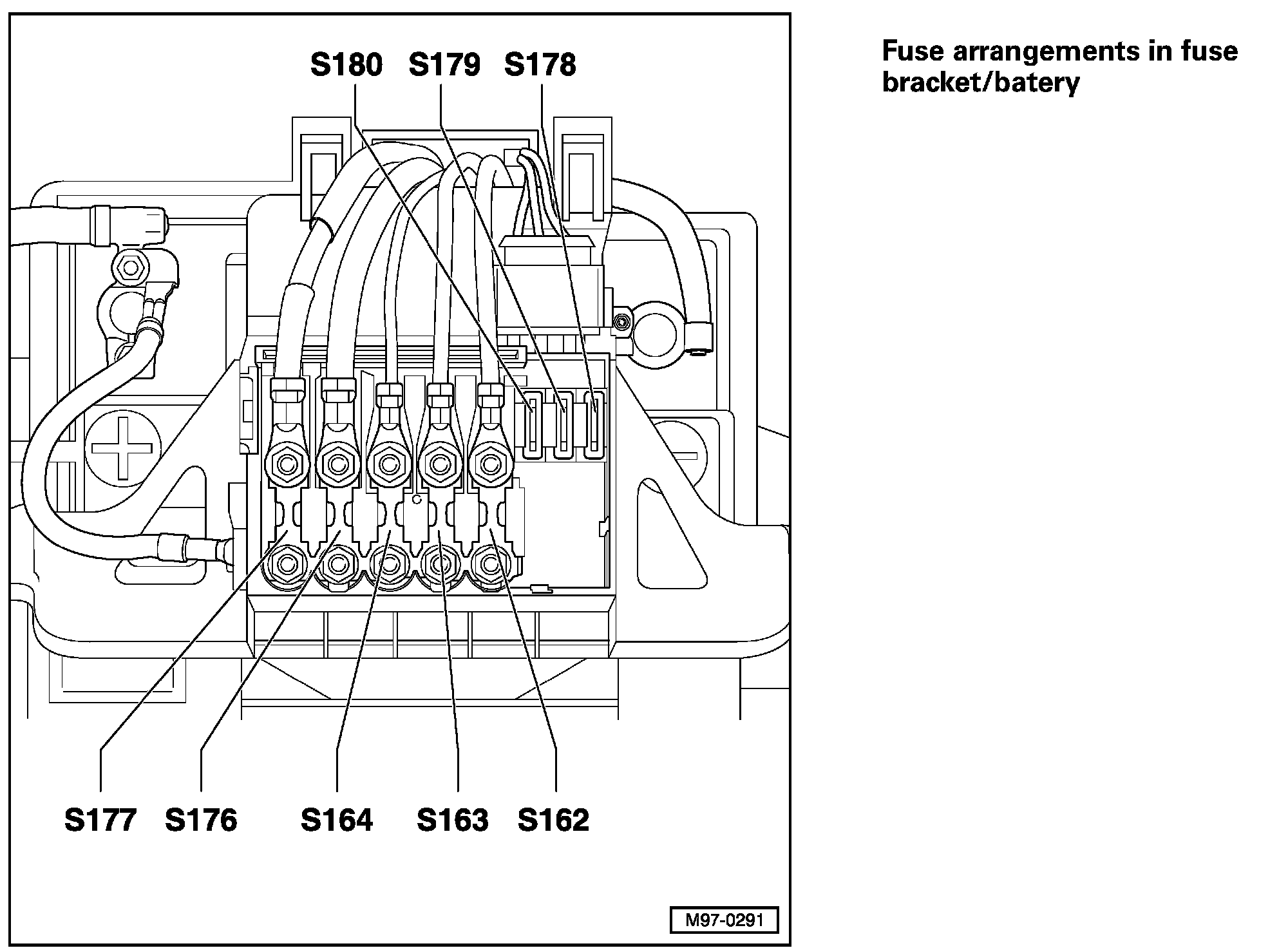

Fuse Arrangements In Fuse Bracket/Battery:

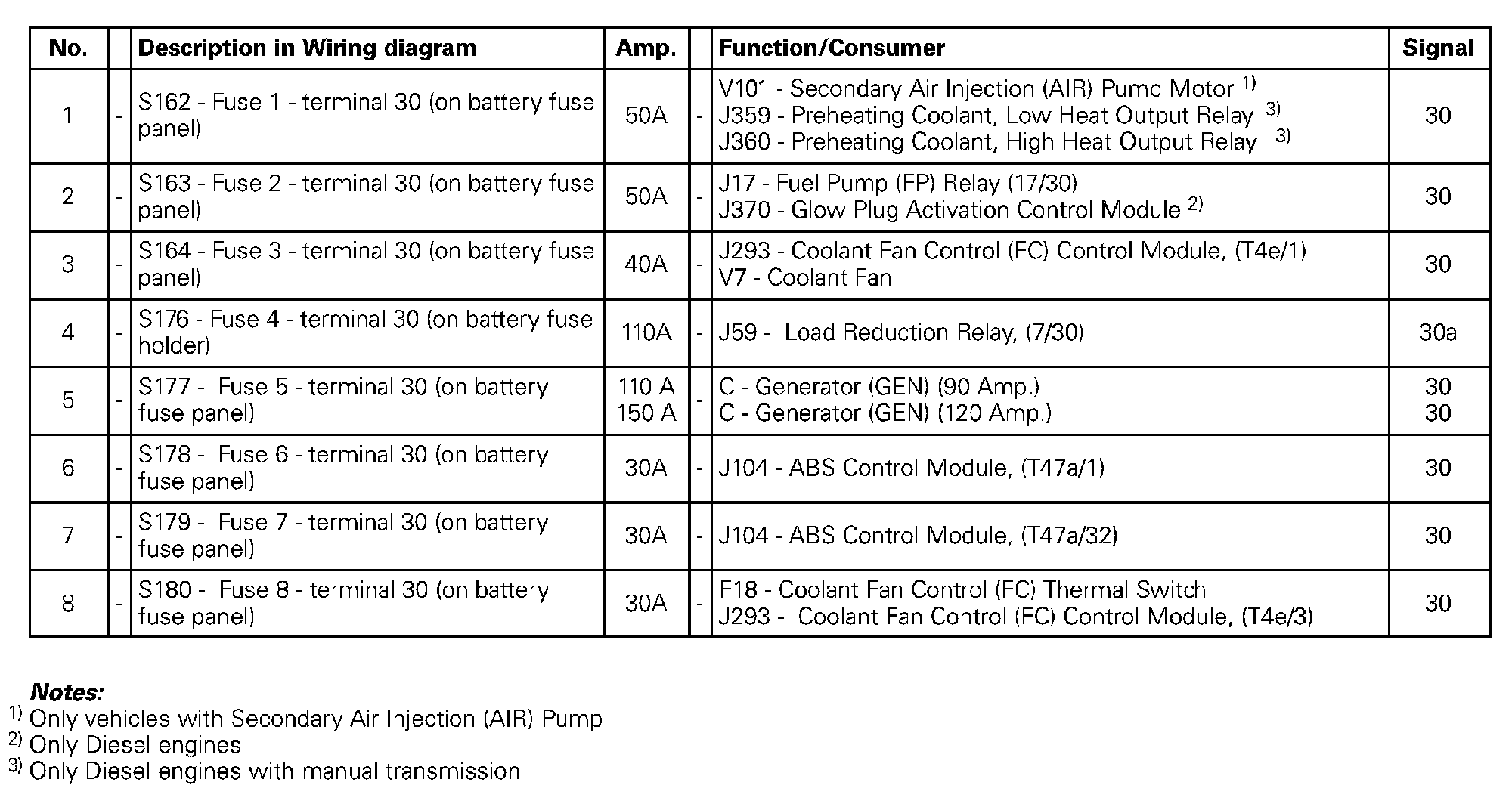

Fuse Arrangements In Fuse Bracket/Battery - Description:
