Removal and Installation

Engine Code BPS (Plastic Fuel Tank)

Fuel Level Sensor

Removing

- Remove the fuel delivery unit. Refer to => [ Fuel Delivery Unit ] Fuel Delivery Unit.

- Disengage the connector prongs for wires - 3 and 4 - and disconnect.

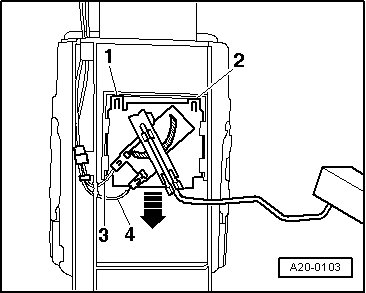

- Pry up the retaining tabs - 1 and 2 - using screwdriver and remove the sensor downward in the - direction of the arrow -.

Installing

- Insert the sensor into the guides on the fuel delivery unit and press up until engagement.

- Insert the connector prongs for the wires and engage.

- Install the fuel delivery unit. Refer to => [ Fuel Delivery Unit ] Fuel Delivery Unit.
