Steering Wheel Assembly Overview

Airbag

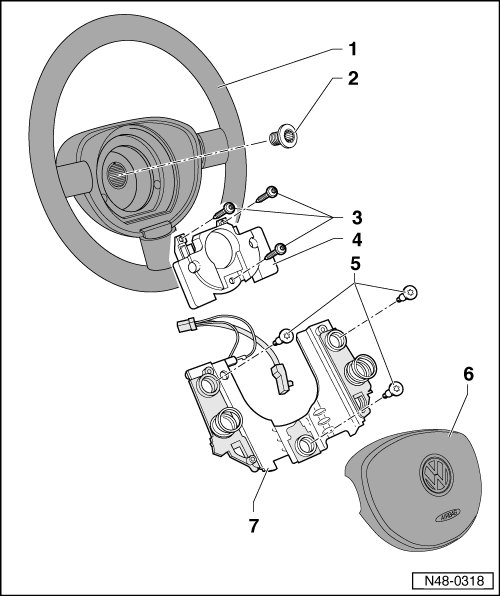

Steering Wheel Assembly Overview





1 - Steering Wheel

• Removing and installing, refer to => [ Steering Wheel ] Airbag

• Observe the installation position when installing.

2 - Bolt

• 60 Nm

• coated with locking compound

• may be used up to five times

Press in a punch indentation after each installation

3 - Torx Screw

• 1.5 Nm

4 - Vibration Damper

• Installed in some vehicles

5 - Torx Screw

• 5 Nm

6 - Airbag Unit

7 - Securing Plate
