Driver/Front Passenger Side Airbag Unit Assembly Overview






Airbag

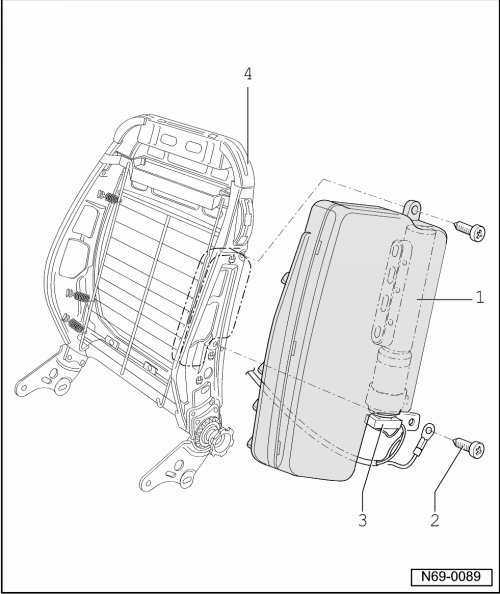

Driver/Front Passenger Side Airbag Unit Assembly Overview





1 - Driver/Front Passenger Side Airbag

2 - Bolt

• 7 Nm

3 - Connector

4 - Backrest Frame
