Air Injection Pump: Service and Repair

Secondary Air Injection Pump Motor

Special tools, testers and auxiliary items required

• Torque wrench (5-50 Nm) (VAG 1331)

Removing

• Secondary Air Injection (AIR) pump motor (V101) is removed together with bracket.

- Remove the left front wheel housing liner.

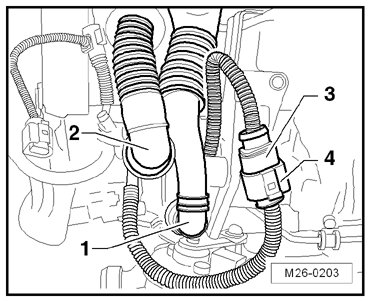

- Disconnect the intake pipe - 2 - and pressure pipe - 1 -. To do so, compress the securing ring.





- Disengage and disconnect the connector - 3 -.

- Unclip the harness connector - 4 - from the bracket.

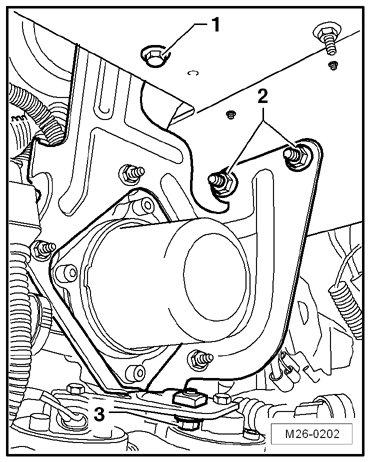

- Remove the bolt - 3 - for the double signal horn bracket.





- Remove the bolt - 1 - and nut - 2 - and remove the bracket with the AIR pump motor.

Installing

Installation is performed in the reverse order of removal. When doing this note the following:

• Make sure that pressure pipe and intake pipe lock securely to AIR pump motor.
