Fuse Arrangements in Fuse Panel, Instrument Panel, Left, From July 2005

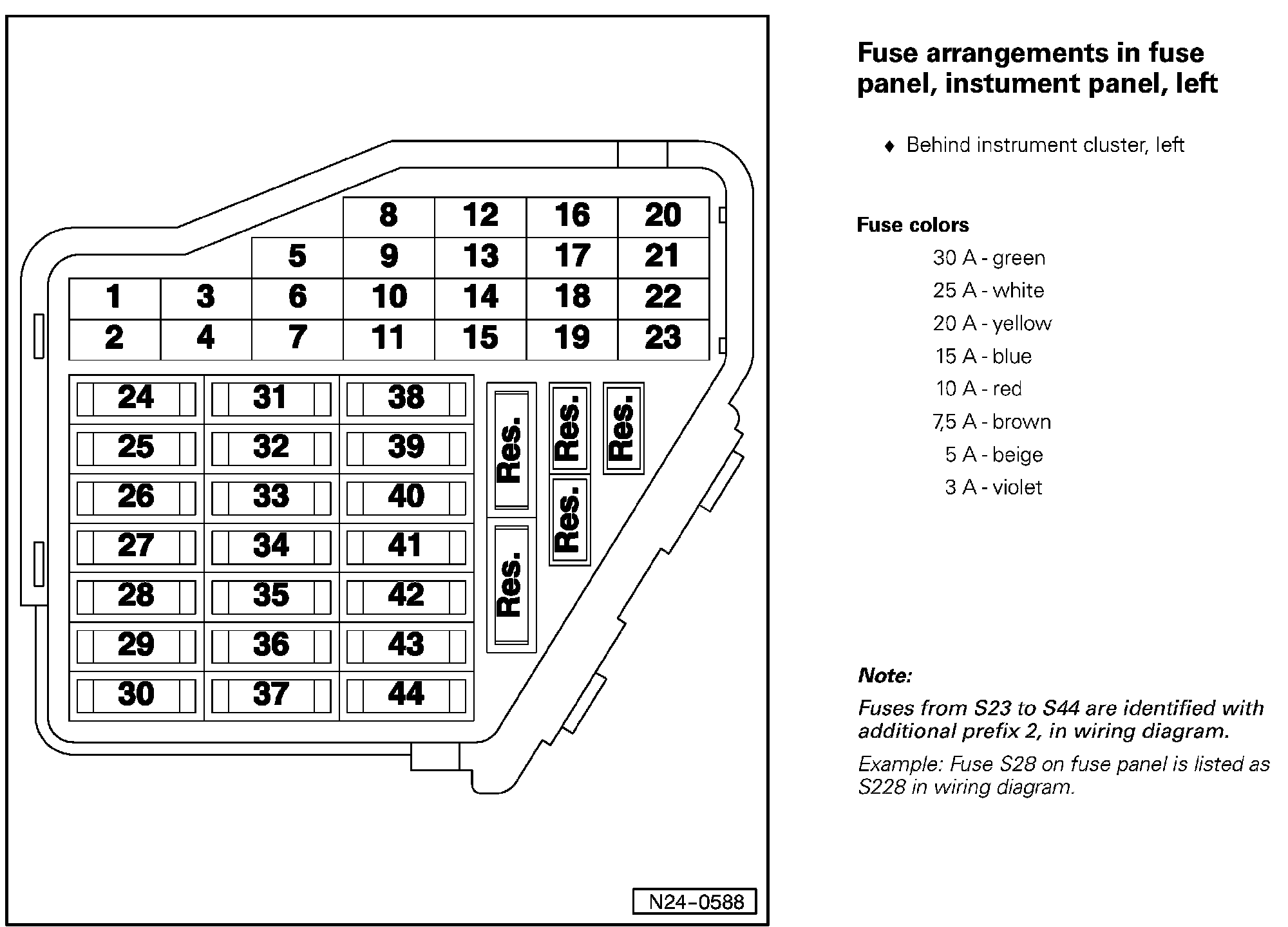

Fuse Arrangements in Fuse Panel, Instrument Panel, Left:

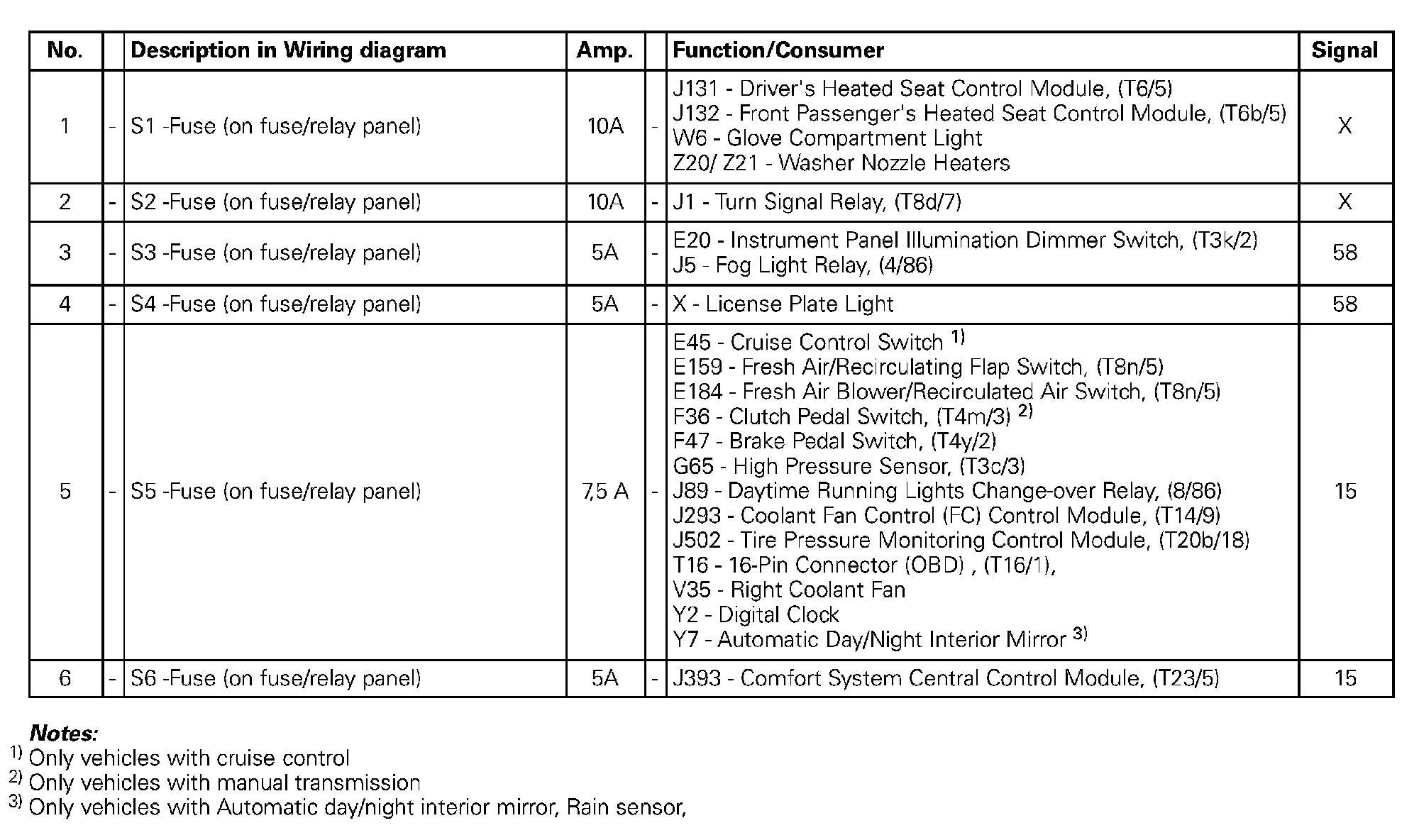

Description, Fuses 1-6:

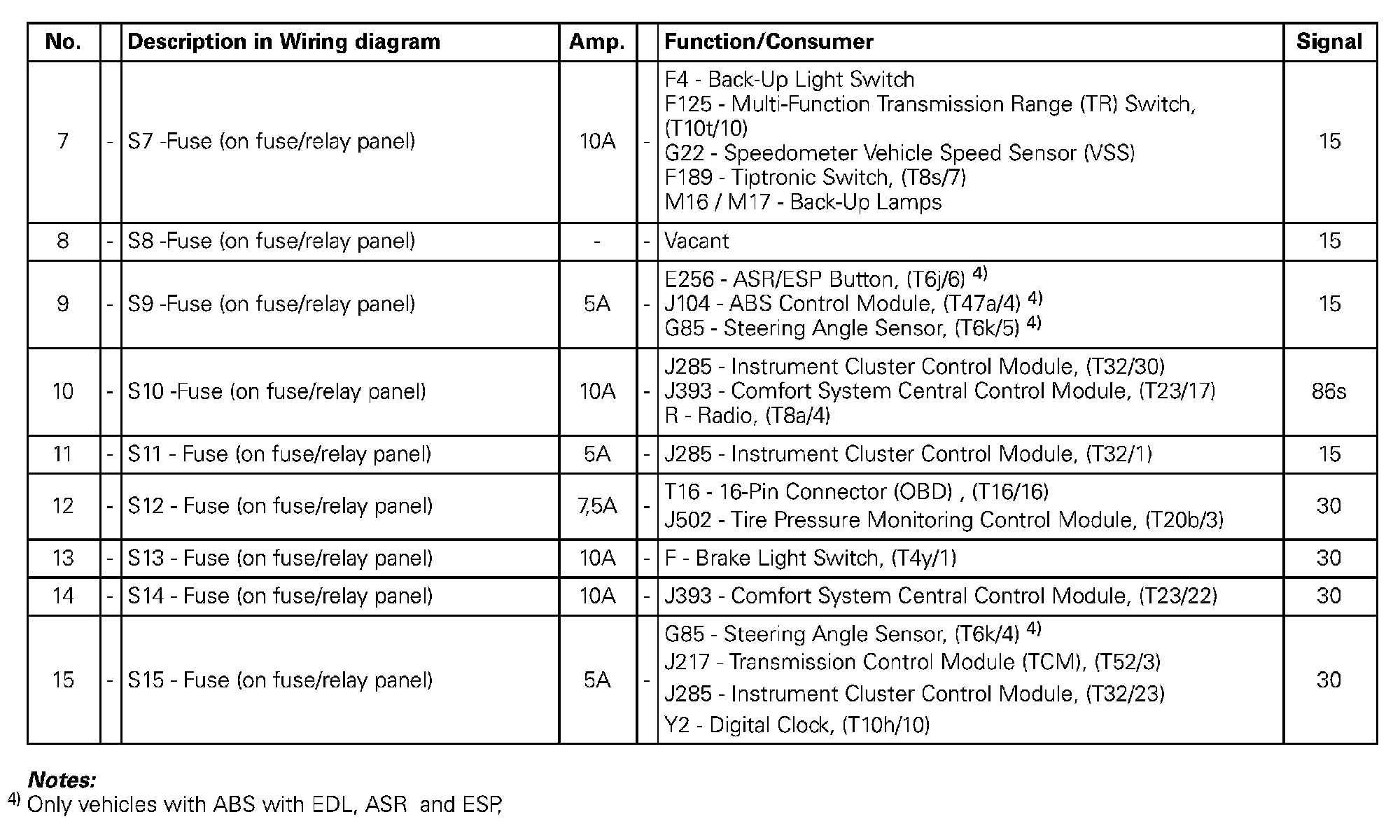

Description, Fuses 7-15:

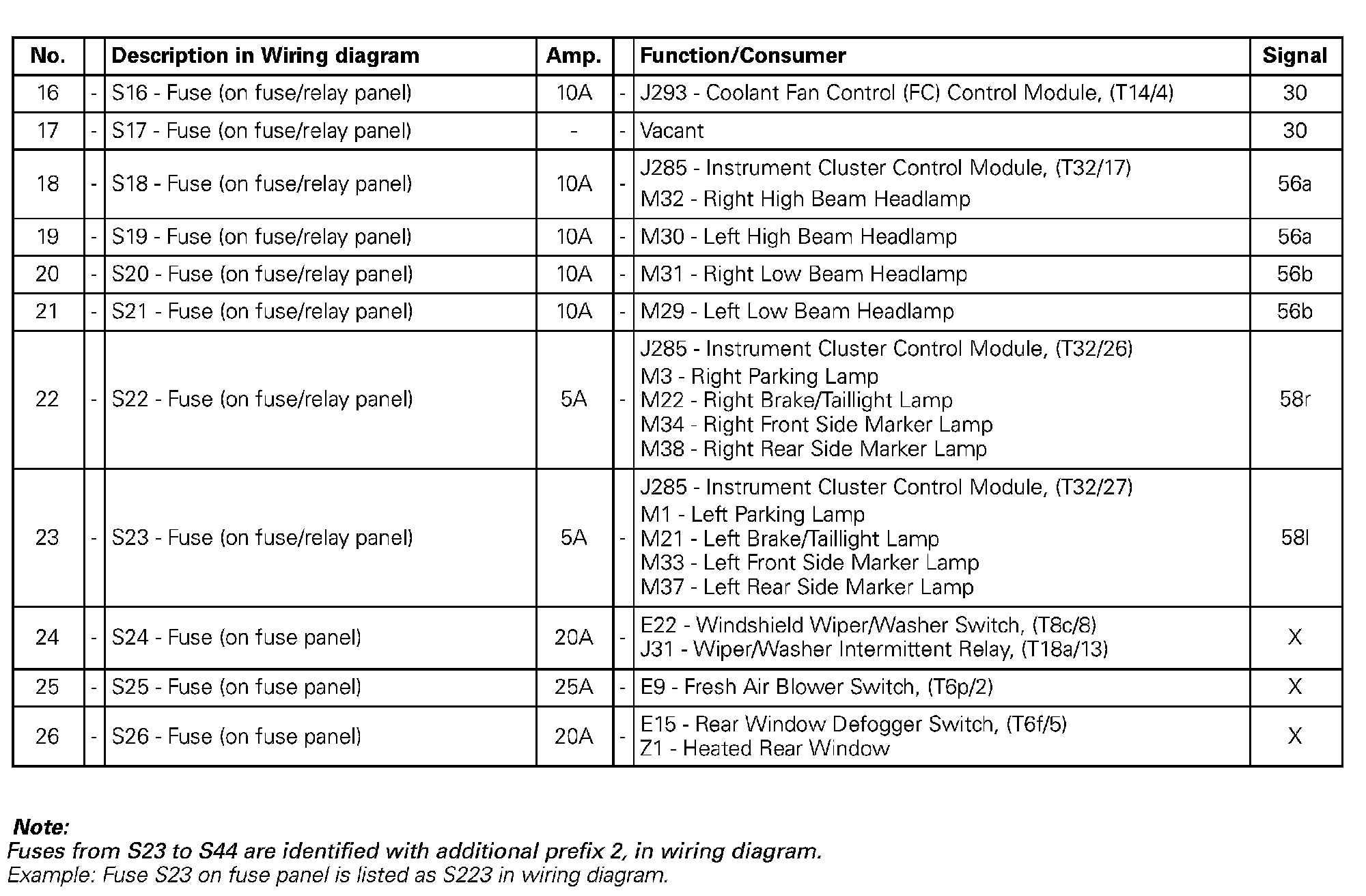

Description, Fuses 16-26:

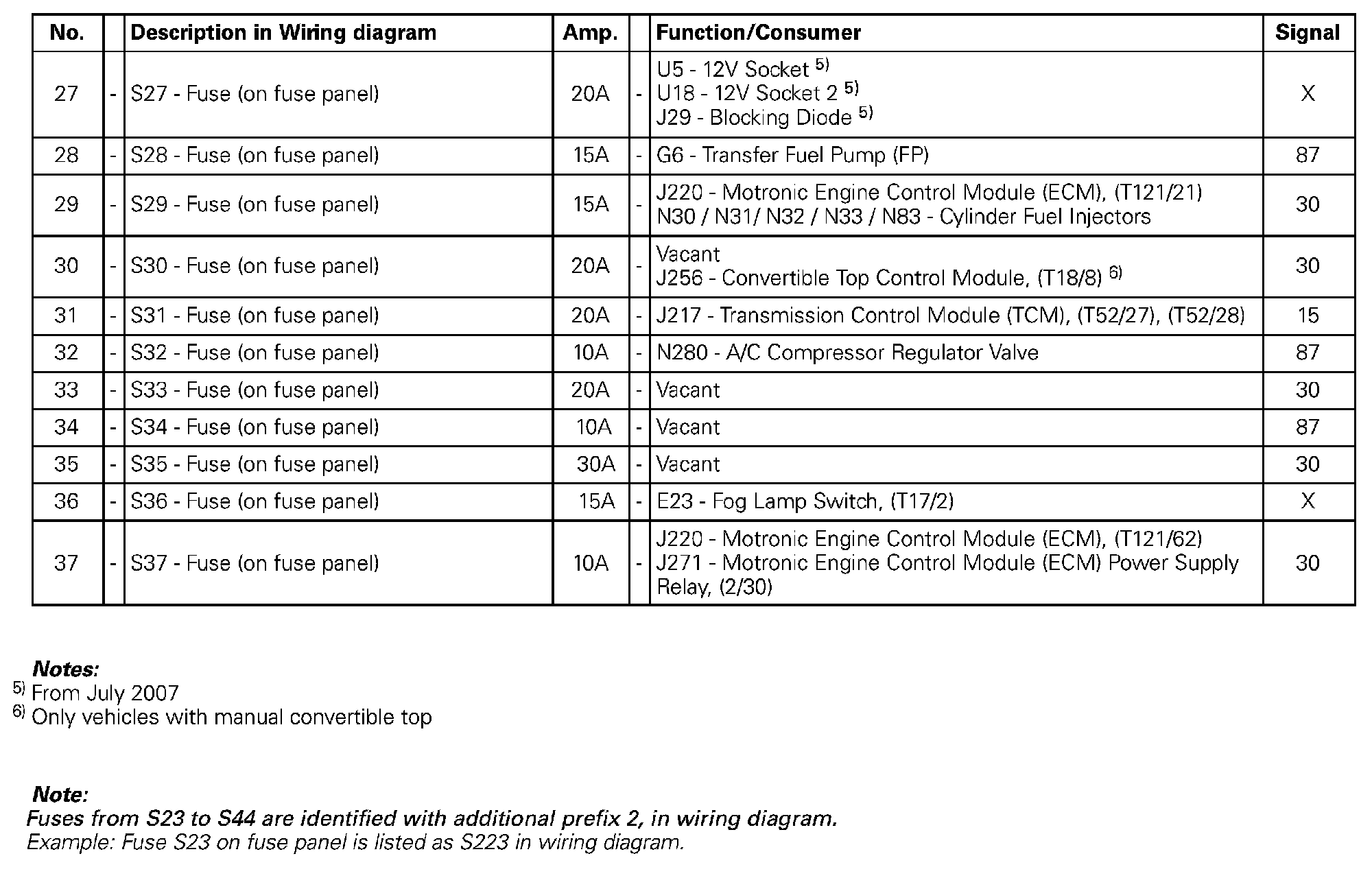

Description, Fuses 27-37:

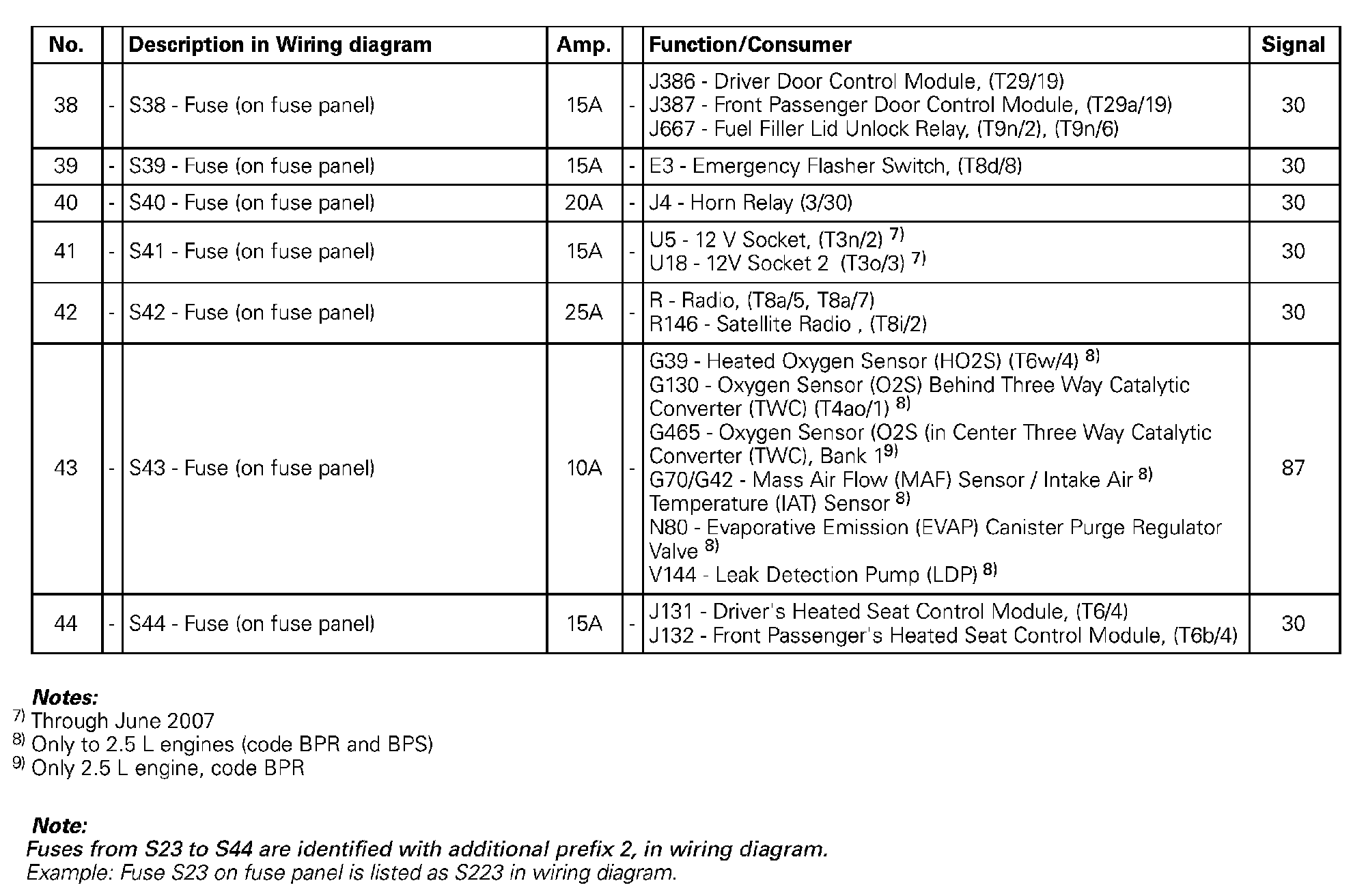

Description, Fuses 38-44:
