Halogen Assembly Overview, From 07.2005

Halogen Assembly Overview, From 07.2005

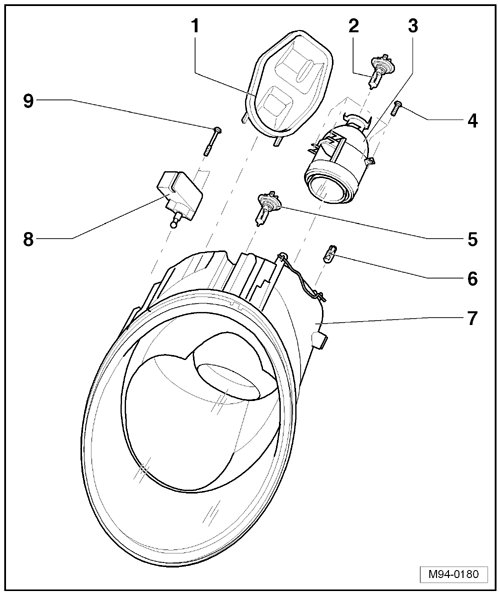

1 Cap

2 Left Low Beam Headlamp (M29) / Right Low Beam Headlamp (M31)

• Bulb H7 12V, 55 W

3 Reflector

4 Screw

• 2 Nm

5 Left High Beam Headlamp (M30) and Right High Beam Headlamp (M32)

• Bulb, H7U 12V, 55 W

6 Left Parking Lamp (M1)/Right Parking Lamp (M3)

• Bulb 12 V, 5 W

7 Headlamp

• Removing and installing, refer to => [ Halogen Headlamp, From 07.2005 ] Halogen Headlamp

8 Left Headlamp Beam Adjustment Motor (V48) and Right Headlamp Beam Adjustment Motor (V49)

9 Screw

• 2 Nm
