HID Headlamp Control Module

HID Headlamp

HID Headlamp Control Module

• The Left HID Lamp Control Module (J343)/Right HID Lamp Control Module (J344) is not equipped with OBD.

• The HID lamp control module for the right headlamp is attached to the right longitudinal member and to the left longitudinal member for the left headlamp. Removal and installation is the same for both sides.

• The illustrations show a Left HID Lamp Control Module (J343).

CAUTION!
• Turn off the ignition and all electrical components.

• Remove the ignition key.

Removing

- Remove front bumper cover.

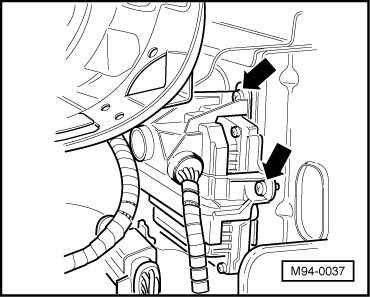

- Remove the screws - arrows - on the bracket for the Left HID Lamp Control Module (J343).





- Remove both the bracket and the Left HID Lamp Control Module (J343).

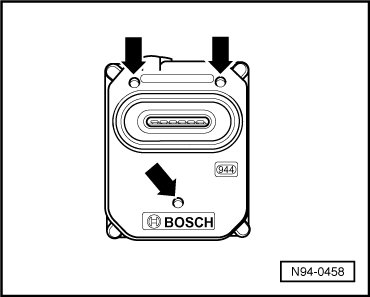

- Remove the screws - arrows - on the Left HID Lamp Control Module (J343).





- Disconnect the connector from the Left HID Lamp Control Module (J343).

Installing

CAUTION!
Make sure the seal is seated properly when installing the Left HID Lamp Control Module (J343). It is destroyed by ingress of water into headlamp.

Install in reverse order of removal, noting the following:

- Tighten the screws to the tightening specification. Refer to => [ HID Assembly Overview ] HID Assembly Overview.

- Make sure the headlamp is working correctly.

- Perform basic setting of headlamp, refer to => [ HID Headlamp, Basic Setting ] HID Headlamp, Basic Setting.
