Display Group 002, Evaluating

Read Measuring Value Block Display Groups, Interpreting

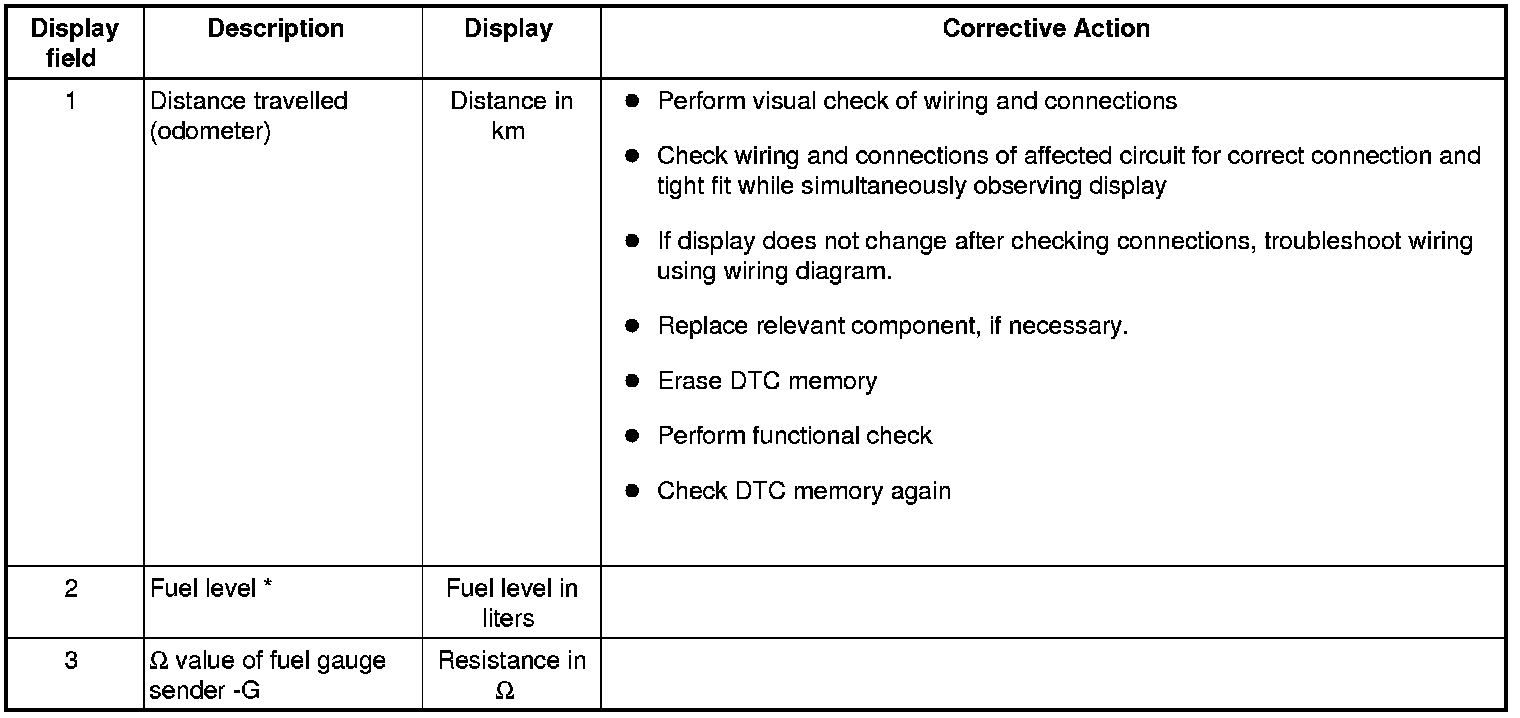

Display Group 002, Evaluating





* For an open circuit of the fuel level sender, " 0L" is displayed in field 2 and 510 ohms is displayed in field 3. For a short circuit of the fuel level sender, "0L" is displayed in field 2 and 0 ohms is displayed in field 3.
